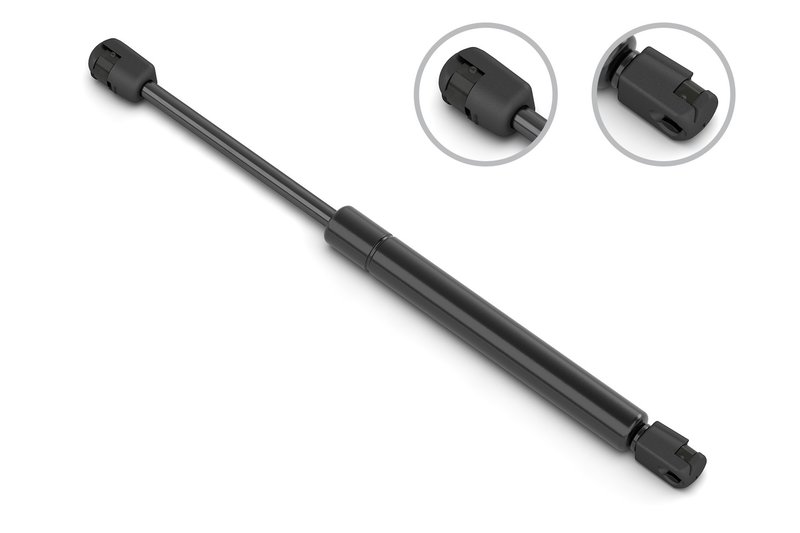

Stabilus 5B-176422 Deck Lid Lift Support

Stabilus Lift Support for Chevrolet Impala and Monte Carlo

This Stabilus lift support, part number 5B-176422, is built for rear hatch, trunk, or deck lid applications that require controlled opening and closing force. With a 126 lb force rating and OE-style plastic socket connections, it matches the specifications needed for select 2000-2005 Chevrolet Impala and Chevrolet Monte Carlo models without a spoiler.

Key Features

• Brand: Stabilus
• Part number: 5B-176422
• Force rating: 559 N / 126 lb
• Extended length: 281 mm / 11.063 in
• Compressed length: 195 mm / 7.677 in
• Rod diameter: 8 mm / 0.315 in
• Tube diameter: 19 mm / 0.748 in
• Plastic socket rod and tube connections
• Direct-fit style replacement for select Chevrolet Impala and Monte Carlo applications

Product Details

The Stabilus 5B-176422 lift support is specified with an 8 mm rod diameter, 19 mm tube diameter, and a compact compressed length of 195 mm. Its 281 mm extended length and 559 N force output are matched to the vehicle application, helping maintain consistent lift and controlled support during operation. This part cross-references Dayco 84119 for the same application.

Compatible With 2000-2002 Chevrolet Impala, N/A; 2005 Chevrolet Impala, N/A; 2000-2002 Chevrolet Monte Carlo, N/A; 2003-2004 Chevrolet Monte Carlo, N/A; and 2005 Chevrolet Monte Carlo, N/A. Search terms such as Chevrolet Impala lift support 5B-176422 and Chevrolet Monte Carlo lift support 5B-176422 align with this OE-style replacement.

Common Problems This Part Can Address

• Rear lid or trunk that drops too quickly
• Liftgate or deck lid that will not stay open
• Weak gas strut performance from age or pressure loss
• Uneven or inconsistent opening effort
• Noise or binding from a worn support assembly

Installation Notes and Tips

Verify the existing support length, end fittings, and force rating before installation. This unit uses plastic socket connections at both ends, so confirm the attachment style matches the original part on the vehicle. Replace supports in matched condition when the opposite side shows similar wear, and support the lid or deck lid securely before removing the old unit.

Quality Assurance

Stabilus is a recognized OE supplier of gas springs and lift supports, and this part is built to match the listed dimensions and application data for accurate replacement fitment.
