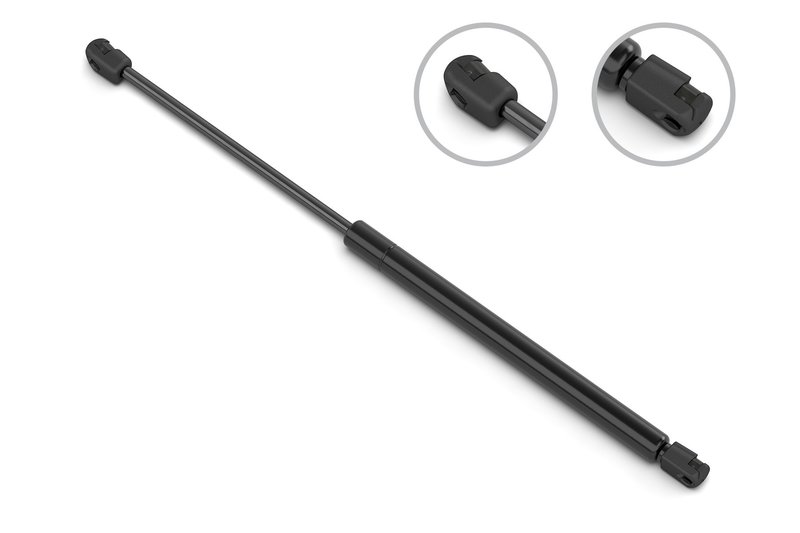

Stabilus 5B-190523 Hood Lift Support

Reliable Hood Lift Support for Ford F-150 and F-250

The Stabilus 5B-190523 Hood Lift Support is engineered to provide consistent and smooth hood operation for Ford F-150, F-150 Heritage, and F-250 models. Designed with precise dimensions and force specifications, this hood lift support ensures safe and controlled hood lifting and holding.

• Compatible with Ford F-150, F-150 Heritage, and F-250 models
• Compressed length: 236.5 mm (9.311 inches)
• Extended length: 335 mm (13.189 inches)
• Rod diameter: 6 mm (0.236 inches) with plastic socket connection
• Tube diameter: 15 mm
• Force rating: 320 N (72 lbs) for reliable support
• Part number: 5B-190523

Technical Specifications and Design Details

This Stabilus hood lift support features a rod diameter of 6 mm and a tube diameter of 15 mm, providing a balanced strength-to-weight ratio suitable for medium-duty applications. The compressed length measures 236.5 mm (9.311 inches), extending to 335 mm (13.189 inches) when fully deployed. The rod end attachment diameter is 10 mm (0.394 inches), utilizing a plastic socket connection for secure mounting. With a force output of 320 Newtons (72 pounds), this lift support offers consistent hood lifting assistance without excessive force, ensuring ease of use and safety.

Applications and Problem Solving

• Supports smooth and controlled hood opening on Ford F-150 and F-250 trucks
• Prevents hood slamming and accidental closure during maintenance
• Replaces worn or weak hood lift supports to restore proper hood function
• Eliminates difficulty in holding the hood open manually
• Reduces strain on hood hinges by providing balanced support

Installation Notes and Tips

Installation of the Stabilus 5B-190523 hood lift support requires matching the original equipment specifications for length and force. Ensure the plastic socket connections are properly seated on the hood and body mounting points. No additional hardware kit is included, so retain existing mounting components or source compatible fasteners if needed. Verify the compressed and extended lengths align with your vehicle’s hood geometry to avoid binding or improper fitment.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive gas springs and lift supports, known for precision engineering and durability. While specific warranty details for part number 5B-190523 are not provided here, Stabilus products typically meet or exceed OEM standards for performance and longevity. Using this hood lift support helps maintain the safety and functionality of your Ford F-150 or F-250 hood system.
