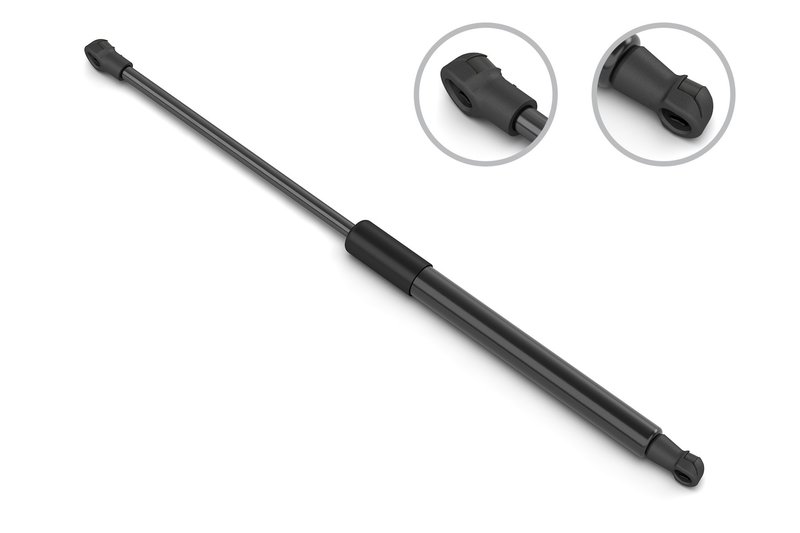

Stabilus 5B-212496 Deck Lid Lift Support

Stabilus 5B-212496 Gas Spring Overview

The Stabilus 5B-212496 gas spring is an OE-style lift support built for controlled opening and closing action on select INFINITI applications. With an 83 lb force rating, 279.5 mm extended length, and 195.5 mm compressed length, it delivers the support needed for smooth panel movement and secure hold-open performance.

Compatible with 2009 INFINITI G37, 2010-2011 INFINITI G37, and 2011 INFINITI G25, this Stabilus 5B-212496 replacement uses plastic socket connections at both ends for a direct-fit style installation on the listed vehicles.

Key Features

• Brand: Stabilus
• Part number: 5B-212496
• Force rating: 370 N / 83 lb
• Extended length: 279.5 mm (11.004 in)
• Compressed length: 195.5 mm (7.697 in)
• Rod diameter: 8 mm (0.315 in)
• Tube diameter: 18 mm (0.709 in)
• Plastic socket rod and tube connections
• Rod end and tube end attachment diameter: 10 mm (0.394 in)

Detailed Description

Stabilus 5B-212496 is a gas spring engineered for controlled lift support on the listed INFINITI models. The 370 N force rating, compact compressed length, and matched socket-style ends help maintain consistent motion and secure positioning for the supported panel or hatch. This part cross-references Dorman - Conduct-Tite 86419 for the same application.

For buyers searching for a 2011 INFINITI G25 lift support, a 2010-2011 INFINITI G37 gas strut, or a 2009 INFINITI G37 support with no spoiler, this part number provides a direct reference point for OE-style replacement selection. The Stabilus 5B-212496 designation is also commonly used when comparing replacement lift supports by length, force, and end fitting style.

What It Helps Address

• Weak or failing lift support that no longer holds a panel open
• Slow, uneven, or uncontrolled opening and closing movement
• Drooping hatch, trunk, or panel support on the listed INFINITI vehicles
• Replacement needs after gas pressure loss in the original support
• Fitment matching for a direct replacement search by part number

Installation Notes and Tips

Verify the compressed length, extended length, force rating, and socket-style end fittings against the removed support before installation. Confirm vehicle application by year and model: Fits 2009 INFINITI G37, N/A, Fits 2010-2011 INFINITI G37, N/A, and Fits 2011 INFINITI G25, N/A. Compare the existing support’s mounting style and attachment diameter to ensure the replacement matches the original hardware interface.

Quality Assurance

Stabilus is a recognized OE supplier for gas springs and lift supports, and this part is built to match the listed dimensional and force specifications for the confirmed applications. Part number 5B-212496 provides a reliable reference for replacement selection on the specified INFINITI fitments.
