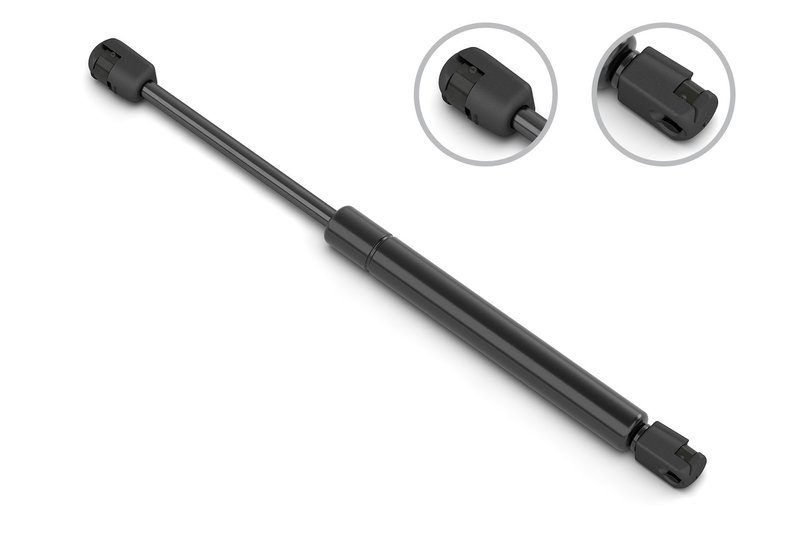

Stabilus 5B-212954 Deck Lid Lift Support

Stabilus 5B-212954 Gas Spring for Camaro

Stabilus 5B-212954 is a gas spring with a 400 N (90 lb) force rating, built with plastic socket connections on both ends for a direct OE-style fit. It measures 195.5 mm compressed length and 278.5 mm extended length, with an 8 mm rod diameter and 18 mm tube diameter.

Fits 2010-2015 Chevrolet Camaro, N/A. This Stabilus 5B-212954 replacement is also cross-referenced with TRW TSG430104 for the same application.

Key Features

• 400 N / 90 lb force rating for controlled lift and support
• Compressed length: 195.5 mm (7.697 in)
• Extended length: 278.5 mm (10.965 in)
• 8 mm rod diameter and 18 mm tube diameter
• Plastic socket rod and tube connections
• OE-style dimensions for application-specific replacement use

Detailed Description

This Stabilus gas spring is engineered around the listed dimensions and force output to match the original support characteristics for the 2010-2015 Chevrolet Camaro. The plastic socket attachment style on the rod and tube ends simplifies direct replacement where the original unit uses the same connection type. With a compact compressed length and a 278.5 mm extended length, part number 5B-212954 is specified for vehicle applications that require precise lift support and controlled motion.

Use 5B-212954 when replacing a worn gas strut on a Chevrolet Camaro and you need the correct length, force, and end fittings to restore normal operation. The part number 5B-212954 appears in multiple cross-reference listings, including AMS Automotive 6183, Focus Auto Parts 86183, and TRW TSG430104.

Common Issues This Part Addresses

• Hood, hatch, or panel that no longer stays open
• Weak or inconsistent lift support
• Slow or uneven opening and closing motion
• Loss of holding force from a worn gas spring
• Incorrect replacement length or end connection fitment

Installation Notes and Tips

Verify compressed length, extended length, rod diameter, tube diameter, and socket-style end fittings before installation. Compare the original gas spring to Stabilus 5B-212954 to confirm the force rating and attachment geometry match the vehicle’s support point. Install with the vehicle safely supported and confirm smooth operation after replacement.

Quality Assurance

Stabilus is a recognized OE supplier for gas springs and lift support components, and this part is built to the listed specifications for application-specific replacement use.
