OE Quality
60-Day Returns

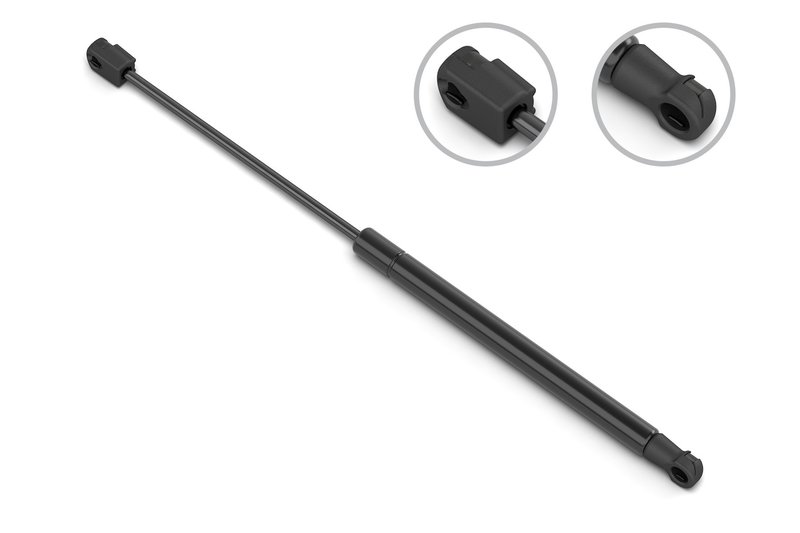

Stabilus 5B-215822 Deck Lid Lift Support
Stabilus 5B-215822 Gas Spring Overview
Stabilus 5B-215822 is a gas spring built for controlled lift and support in vehicle applications that use a compact OE-style strut with plastic socket connections. It measures 296 mm extended length and 193 mm compressed length, with 385 N (87 lb) of force for consistent opening and closing action. This part number is listed for Chrysler Sebring and Chrysler Cirrus applications from 2007-2009.
Key Features
- Stabilus part number 5B-215822
- Extended length: 296 mm (11.654 in)
- Compressed length: 193 mm (7.598 in)
- Force rating: 385 N / 87 lb
- Rod diameter: 8 mm (0.315 in)
- Tube diameter: 18 mm (0.709 in)
- Plastic socket rod and tube connections
- Tube end attachment diameter: 10 mm (0.394 in)
Detailed Description
This Stabilus gas spring is specified with plastic socket connections at both ends and a compact body profile for vehicle lift-support systems that require measured extension and controlled compression. The 385 N force rating, along with the listed rod and tube dimensions, helps match OE-style mounting and operating geometry. This part cross-references Tuff Support 614056 for the same application. It is listed for Fits 2007-2009 Chrysler Sebring, N/A and Fits 2007-2009 Chrysler Cirrus, N/A, making 5B-215822 a direct search match for Chrysler Sebring and Chrysler Cirrus gas spring replacement needs.
Common Replacement Reasons
- Lift support no longer holds position
- Hatch, lid, or panel drops too quickly
- Weak or inconsistent opening force
- Original gas strut shows wear at the socket ends
- Replacement needed for OE-style fitment on Chrysler Sebring or Chrysler Cirrus
Installation Notes and Tips
Verify compressed length, extended length, force rating, and end connection style before installation. Confirm the plastic socket attachment points match the vehicle mounting hardware and compare the rod and tube diameters to the removed unit. For best results, replace the gas spring only after supporting the panel or lid securely and check operation through the full travel range after installation.
Quality Assurance
Stabilus is a recognized gas spring manufacturer, and this 5B-215822 unit is built to match the listed OE-style dimensions and force specification for the stated Chrysler applications.
| Brand | Stabilus |
|---|---|
| Part Number | 5B-215822 |
| Y | |
| Y | |
| Body | 0.709 |
| Compressed Length | 7.598 |
| Compressed Length | 193 |
| Extended Length | 11.654 |
| Extended Length | 296 |
| Force (N) | 385 |
| Force Lbs | 87 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.315 |
| Rod End Attachment Dia (MM) | 8 |
| Shaft | 0.315 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.709 |
| Tube Diameter | 18 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2009 | Chrysler | Cirrus | Sedan | N/A | |
| 2009 | Chrysler | Sebring | Sedan | N/A | |
| 2008 | Chrysler | Cirrus | Sedan | N/A | |
| 2008 | Chrysler | Sebring | Sedan | N/A | |
| 2007 | Chrysler | Cirrus | N/A | ||
| 2007 | Chrysler | Sebring | Sedan | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
