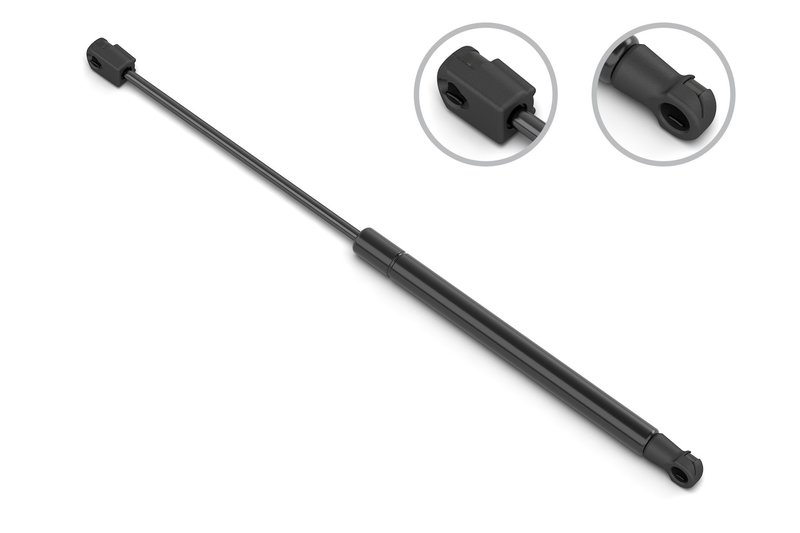

Stabilus 5B-216539 Deck Lid Lift Support
Stabilus 5B-216539 Gas Spring for Dodge Avenger
The Stabilus 5B-216539 is a gas spring built for rear lift support applications on select Dodge Avenger models. It uses plastic socket connections at both ends and is specified with a 340 N (76 lb) force rating, 361 mm extended length, and 244.5 mm compressed length.
Key Features
- Brand: Stabilus
- Part number: 5B-216539
- Force rating: 340 N / 76 lb
- Extended length: 361 mm (14.213 in)
- Compressed length: 244.5 mm (9.626 in)
- Rod diameter: 8 mm (0.315 in)
- Tube diameter: 18 mm (0.709 in)
- Plastic socket rod and tube connections
- Direct fitment for select Dodge Avenger applications
Detailed Description
This Stabilus gas spring is engineered to match the dimensions and attachment style used on specific Dodge Avenger lift support applications. It cross-references Monroe Shocks & Struts 172286 and 182286 for the same application. Use the part number 5B-216539 when verifying replacement needs for 2010 Dodge Avenger, 2014 Dodge Avenger, and 2009-2013 Dodge Avenger with spoiler. The compact compressed length, measured rod and tube diameters, and plastic socket ends make it important to confirm the original support before ordering.
Common Issues This Part Addresses
- Rear hatch or trunk lid that drops instead of staying open
- Weak lift support that no longer holds the panel at full height
- Slow or uneven opening action on the rear lid
- Loss of support caused by worn internal gas pressure
- Replacement need after the original gas spring loses force
Installation Notes and Tips
Match the original extended length, compressed length, force rating, and socket style before installation. Inspect the mounting points and surrounding brackets for wear or damage, and compare the existing support to Stabilus 5B-216539 to confirm the correct application. For 2009-2013 Dodge Avenger models with spoiler, verify the spoiler-equipped configuration before ordering.
Quality Assurance
Stabilus is a recognized OE supplier for gas springs and lift supports, and this part is built to the listed dimensional and force specifications for the stated applications.
| Brand | Stabilus |
|---|---|
| Part Number | 5B-216539 |
| Y | |
| Y | |
| Body | 0.709 |
| Compressed Length | 9.626 |
| Compressed Length | 244.5 |
| Extended Length | 14.213 |
| Extended Length | 361 |
| Force (N) | 340 |
| Force Lbs | 76 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.315 |
| Rod End Attachment Dia (MM) | 8 |
| Shaft | 0.315 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.709 |
| Tube Diameter | 18 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
This part fits 7 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Dodge | Avenger | N/A | |
| 2013 | Dodge | Avenger | N/A | w/ Spoiler |
| 2012 | Dodge | Avenger | N/A | w/ Spoiler |
| 2011 | Dodge | Avenger | N/A | w/ Spoiler |
| 2010 | Dodge | Avenger | N/A | |
| 2010 | Dodge | Avenger | N/A | w/ Spoiler |
| 2009 | Dodge | Avenger | N/A | w/ Spoiler |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
