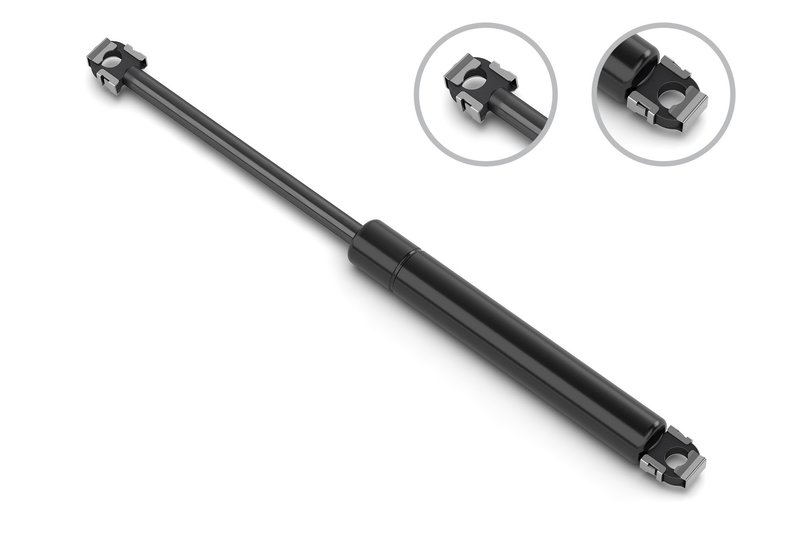

Stabilus 5B-252902 Hood Lift Support

Reliable Hood Lift Support for Lincoln Vehicles

The Stabilus 5B-252902 Hood Lift Support is engineered to provide consistent and smooth hood operation for select Lincoln models. Designed specifically for the Lincoln Continental, Mark VI, and Town Car, this hood lift support ensures safe and controlled hood lifting and holding.

• Compatible with Lincoln Continental, Mark VI, and Town Car
• Compressed length: 153.5 mm (6.043 inches)
• Extended length: 243 mm (9.567 inches)
• Rod diameter: 10 mm (0.394 inches)
• Tube diameter: 22 mm
• Force rating: 886 N (199 lbs)
• Rod connection: Metal blade with retaining clip
• Non-engine specific, designed for body hood support

Technical Details and Specifications

The Stabilus 5B-252902 hood lift support features a compressed length of 153.5 mm and extends up to 243 mm, providing ample range for hood movement. The rod diameter measures 10 mm, while the tube diameter is 22 mm, ensuring durability and strength under load. With a force rating of 886 Newtons (199 pounds), this gas spring offers reliable support to hold the hood securely in place during maintenance or inspection. The rod end attachment uses a metal blade with a retaining clip for secure and stable connection to the vehicle’s hood and body.

Applications and Problem Solving

• Replaces worn or weak hood lift supports on Lincoln Continental, Mark VI, and Town Car
• Prevents sudden hood drops that can cause injury or damage
• Ensures smooth and controlled hood opening and closing
• Eliminates the need for manual propping of the hood
• Restores factory-level hood support performance

Installation Notes and Tips

Installation of the Stabilus 5B-252902 hood lift support requires removal of the old gas spring and attachment of the new unit using the existing mounting points. The metal blade with retaining clip connection allows for straightforward installation without additional hardware. It is recommended to support the hood securely during replacement to avoid injury. Verify the correct orientation of the lift support to ensure proper function and longevity.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of gas springs and lift supports, known for precision engineering and durability. While this product does not include a hardware kit, it is manufactured to meet OEM specifications for Lincoln Continental, Mark VI, and Town Car models. Please consult product documentation or manufacturer resources for warranty details and coverage.
