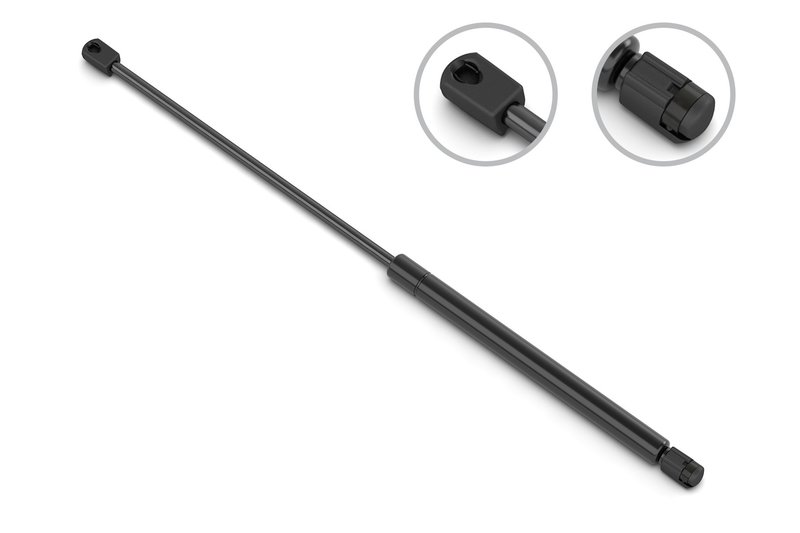

Stabilus 5B-256213 Hood Lift Support

Overview of Stabilus Hood Lift Support 5B-256213

The Stabilus Hood Lift Support 5B-256213 is engineered to provide reliable hood support for Hummer H3 and H3T models. Designed with precise dimensions and force specifications, this hood lift support ensures smooth and controlled hood operation.

• Compatible with Hummer H3 and H3T models
• Compressed length: 236 mm (9.291 inches)
• Extended length: 375.5 mm (14.783 inches)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 19 mm
• Force rating: 410 N (92 lbs)
• Rod connection type: Plastic socket
• Non-engine specific, body category part

Technical Specifications and Features

This hood lift support from Stabilus offers a compressed length of 236 mm and extends up to 375.5 mm, providing ample range for hood movement on Hummer H3 and H3T vehicles. The rod diameter measures 8 mm, paired with a 19 mm tube diameter, ensuring structural integrity and durability. With a force rating of 410 Newtons (92 pounds), it delivers consistent support to hold the hood securely in place. The rod end attachment uses a plastic socket connection, facilitating straightforward installation and reliable operation.

Application and Problem Solving

The Stabilus 5B-256213 hood lift support is specifically designed for the Hummer H3 and H3T, addressing common issues such as:

• Difficulty in holding the hood open safely during maintenance
• Worn or weak original hood supports causing unstable hood positioning
• Excessive effort required to lift or lower the hood
• Noise or jerky hood movement due to failing lift supports
• Corrosion or damage to existing hood lift components

Installation Notes and Tips

Installation of the Stabilus hood lift support 5B-256213 is straightforward when following these guidelines:

• Ensure the vehicle is parked on a level surface and the hood is securely propped open before removal
• Remove the old lift support by detaching the plastic socket connections carefully to avoid damage
• Align the new lift support with the mounting points on the hood and body
• Press the plastic socket ends firmly onto the ball studs until they snap into place
• Test the hood operation to confirm smooth lifting and secure holding

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive lift supports, known for precision engineering and durability. The 5B-256213 hood lift support is manufactured to meet OEM standards for fit and function on Hummer H3 and H3T models. While specific warranty details may vary, Stabilus products typically come with a limited warranty covering defects in materials and workmanship. For exact warranty terms, consult the product documentation or manufacturer resources.
