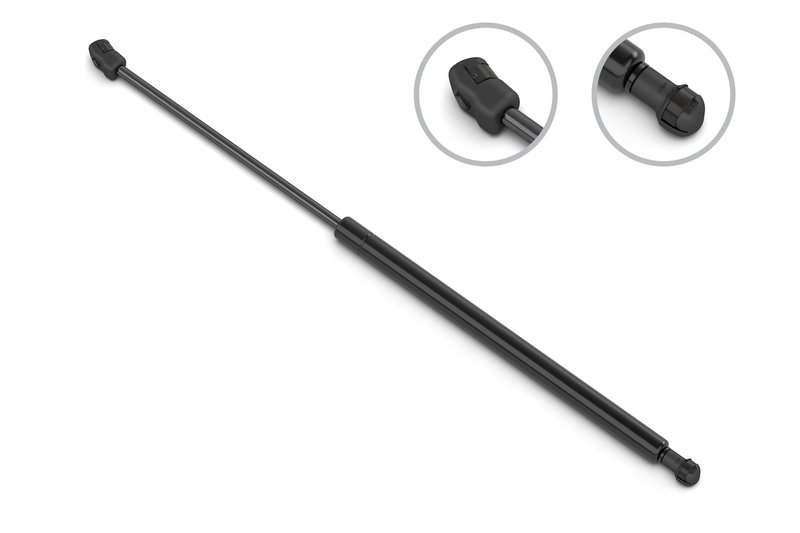

Stabilus 5B-272261 Back Glass Lift Support
| Brand | Stabilus 5B-272261 |
|---|---|
| Y | |
| Y | |
| Body | 0.591 |
| Compressed Length | 9.705 |
| Compressed Length | 246.5 |
| Extended Length | 15.157 |
| Extended Length | 385 |
| Force (N) | 195 |
| Force Lbs | 44 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.236 |
| Rod Diameter | 6 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.236 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.591 |
| Tube Diameter | 15 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
| Fits | Toyota · 6 vehicles |
Lift support. Keeps glass open smoothly with controlled, consistent support.
Plastic socket ends. Simple attachment style for a clean, secure connection.
Stabilus engineering delivers dependable gas spring performance.
Cross-references AMS Automotive 7032, Monroe Shocks & Struts 272261 and Stabilus 5B-272261 for the same application. See all 15.
Back Glass Lift Support for Toyota Highlander
This Stabilus back glass lift support is built for the rear glass on 2014-2019 Toyota Highlander models. It provides controlled lift and hold for the back glass, helping restore normal operation when the original support loses pressure.
Key Features
- Brand: Stabilus
- Part number: 5B-272261
- Back glass lift support for the rear glass area
- Compressed length: 246.5 mm (9.705 in.)
- Extended length: 385 mm (15.157 in.)
- Force rating: 195 N (44 lb)
- Rod diameter: 6 mm (0.236 in.)
- Tube diameter: 15 mm (0.591 in.)
- Plastic socket rod and tube connections
- Direct fit for 2014-2019 Toyota Highlander applications
Detailed Description
Stabilus 5B-272261 is a rear glass lift support engineered for the Toyota Highlander back glass application. With a 195 N force rating, 385 mm extended length, and plastic socket end connections, it is specified to match the dimensions and attachment style used on 2014-2019 Toyota Highlander models. This part cross-references Monroe Shocks & Struts 272261 for the same application.
Use 5B-272261 when the rear glass no longer stays open, drops too quickly, or feels weak during operation. The compact compressed length and OE-style socket connections support a clean replacement on the Highlander rear glass assembly.
What It Helps Fix
- Rear glass that will not stay raised
- Lift support that opens too slowly or feels weak
- Back glass that drops unexpectedly
- Loss of smooth, controlled glass movement
- Wear-related failure in the original lift support
Installation Notes and Tips
Verify the compressed length, extended length, force rating, and plastic socket attachment style before installation. Compare the original support to Stabilus 5B-272261 to confirm the correct rear glass application for your Toyota Highlander. Inspect the mounting points and surrounding hardware for wear or damage before replacing the support.
Quality Assurance
Stabilus is a recognized supplier of gas spring and lift support components, and this part is built to the listed dimensional and force specifications for the stated vehicle application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2019 | Toyota | Highlander | N/A | — |
| 2018 | Toyota | Highlander | N/A | — |
| 2017 | Toyota | Highlander | N/A | — |
| 2016 | Toyota | Highlander | N/A | — |
| 2015 | Toyota | Highlander | N/A | — |
| 2014 | Toyota | Highlander | N/A | — |
