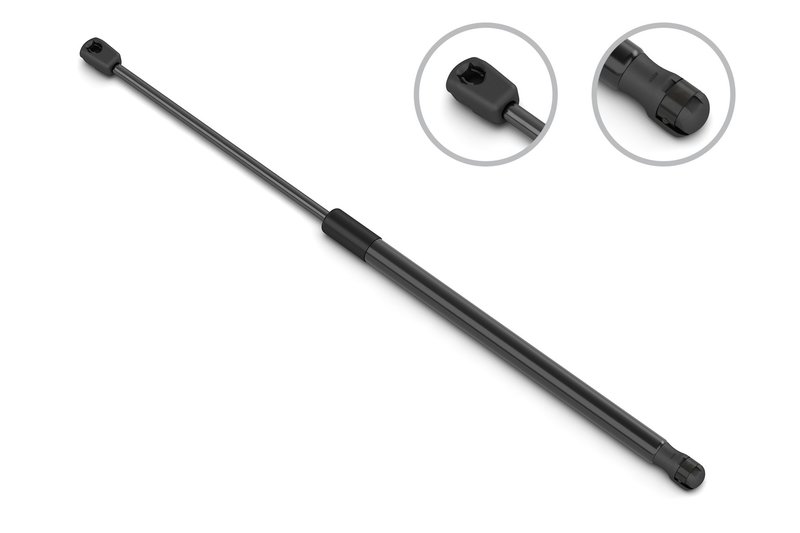

Stabilus 5B-309325 Trunk Lid Lift Support

Trunk Lid Lift Support for Camaro

Restore controlled trunk operation with this Stabilus Lift-O-Mat trunk lid lift support, part number 5B-309325. It is engineered for application-specific motion control and is listed for the 2016-2017 Chevrolet Camaro coupe with spoiler, helping the trunk open smoothly and close with a controlled finish.

• Stabilus Lift-O-Mat gas lift support with dynamic damping
• Ball socket ends with nylon end materials
• Extended length: 302.5 mm (11.91 in.)
• Compressed length: 203.5 mm (8.01 in.)
• Stroke length: 99 mm (3.9 in.)
• Maximum force: 320 N
• Application-specific OE-style motion control

Application Details

Fits 2016-2017 Chevrolet Camaro, N/A, Coupe, 1st Design, w/ Spoiler. This Stabilus 5B-309325 trunk lid lift support is built around dynamic damping, using a precision gas-flow design that regulates extension speed and softens the final portion of travel for a more controlled stop. The result is consistent trunk lid movement that matches the needs of the specific Camaro application.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Reasons

• Trunk lid drops too quickly when opened
• Trunk lid will not stay raised
• Uneven or inconsistent lift support resistance
• Weak gas pressure causing poor trunk control
• Harsh closing or abrupt end-of-stroke movement

Installation Notes

Verify the vehicle is a 2016-2017 Chevrolet Camaro coupe with spoiler before ordering. Match the ball socket end style, compressed length, extended length, and force rating to the original support. Inspect the mounting points for wear before installation, and confirm the trunk lid cycles smoothly after replacement.

Quality Assurance

Stabilus Lift-O-Mat supports are built for precise motion control and OE-focused performance. The dynamic damping design uses a shaped velocity manifold in the tube wall to manage gas flow and deliver a controlled, application-specific closing action.
