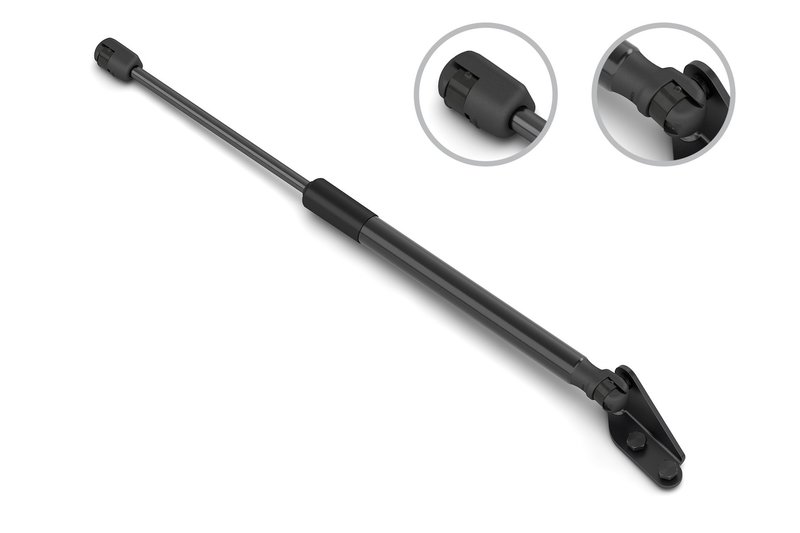

Stabilus 5B-330085 - Left

Stabilus Lift Support for Nissan LEAF

This Stabilus lift support is built for the left side of the 2011-2012 Nissan LEAF. Part number 5B-330085 matches the specified OE-style application with a 500 N force rating for controlled opening and holding action.

• Brand: Stabilus
• Part number: 5B-330085
• Fits 2011-2012 Nissan LEAF, left
• Extended length: 380.5 mm (14.98 in)
• Compressed length: 243.5 mm (9.587 in)
• Force rating: 500 N / 112 lb
• Rod diameter: 8 mm (0.315 in)
• Tube diameter: 18 mm (0.709 in)
• Rod connection: plastic socket
• Tube connection: plastic socket with bracket

Application Details

Stabilus 5B-330085 is a gas spring-style support specified for the left-side Nissan LEAF application listed above. The measured compressed and extended lengths, along with the 500 N force rating, are important for matching lift height, opening effort, and hold position on the vehicle. This part cross-references Nissan OE numbers 90451-3NA0A and 90451-3NK1A for the same application.

Common Replacement Reasons

• Rear or liftgate support no longer holds the panel open
• Slow, weak, or uneven opening action
• Support rod drops after being raised
• Visible wear at the socket ends or mounting points
• Incorrect lift effort after prior replacement

Installation Notes

Verify left-side placement before installation and compare the compressed length, extended length, and end fittings to the removed unit. Confirm the plastic socket and bracket connection points are clean and undamaged, and support the panel before removing the old lift support. Match the part number 5B-330085 to the vehicle side and application listed for the 2011-2012 Nissan LEAF.

Quality Assurance

Stabilus is a recognized OE supplier for gas springs and lift supports, and this part is built to the listed dimensions and force specification for the Nissan LEAF application. Part number 5B-330085 is identified for the 2011-2012 Nissan LEAF, left side.
