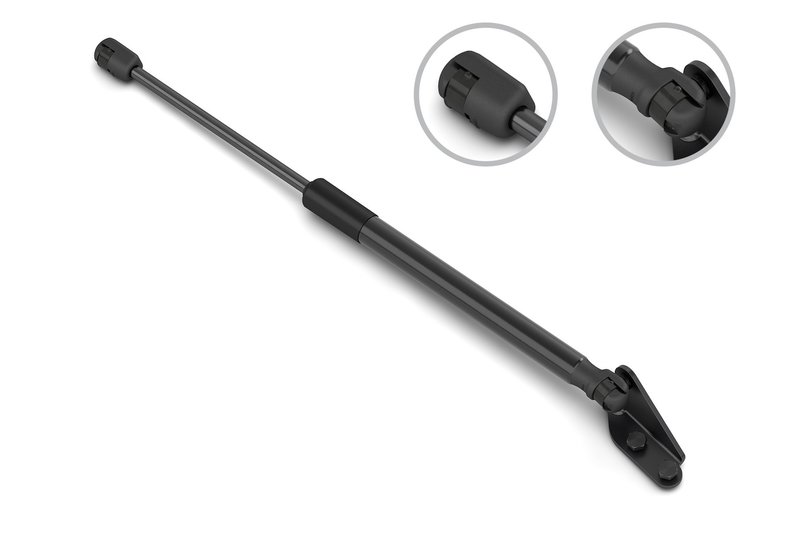

Stabilus 5B-330324 - Right
Stabilus 5B-330324 Gas Spring for Nissan LEAF
Stabilus 5B-330324 is a gas spring with a 500 N force rating, built with a plastic socket rod connection and a plastic socket with bracket tube connection. It measures 380.5 mm extended length and 243.5 mm compressed length, with an 8 mm rod diameter and 18 mm tube diameter.
Fits 2011-2012 Nissan LEAF, right. This Stabilus gas spring is a direct-fit option for the right-side application on the Nissan LEAF, using the listed OE-style connection points and dimensions.
Key Features
- Part number: 5B-330324
- 500 N / 112 lb force rating
- Extended length: 380.5 mm (14.98 in)
- Compressed length: 243.5 mm (9.587 in)
- Rod diameter: 8 mm (0.315 in)
- Tube diameter: 18 mm (0.709 in)
- Plastic socket rod connection
- Plastic socket with bracket tube connection
Detailed Description
Stabilus 5B-330324 is an automotive gas spring specified for the right side of the 2011-2012 Nissan LEAF. The listed dimensions and 500 N force rating are important for matching lift support geometry, opening effort, and closed-position fitment. If you are replacing a worn support on a Nissan LEAF right-side application, this part number provides a direct reference point for OE-style replacement matching.
This part cross-references Tuff Support 613644 for the same application.
What It Is Used For
- Replacing a weak or failed lift support on the right side
- Restoring controlled opening and closing action
- Addressing a hatch, lid, or panel that will not stay open
- Correcting uneven support force compared with the original unit
- Matching the specified length and connection style for the vehicle application
Installation Notes and Tips
Verify the compressed length, extended length, rod diameter, tube diameter, and socket-style end connections before installation. Compare the existing support to the listed dimensions and confirm right-side placement on the vehicle. Inspect the mounting points for wear or damage before installing the replacement gas spring.
Quality Assurance
Stabilus is a recognized OE supplier for gas springs and lift supports, and this part is built to match the listed application specifications for the Nissan LEAF. Confirm fitment by year, model, and position before ordering.
| Brand | Stabilus |
|---|---|
| Part Number | 5B-330324 |
| 0.315 | Y |
| Compressed Length | 243.5 |
| Compressed Length | 9.587 |
| Rod Diameter | 8 |
| Tube Diameter | 18 |
| Extended Length | 14.98 |
| Extended Length | 380.5 |
| Head Drive Type | Y |
| Agricultural Equipment | N |
| Body | 0.709 |
| Engine Specific | N |
| Force (N) | 500 |
| Force Lbs | 112 |
| Hardware Kit | No |
| Heavy Truck | N |
| High Performance | N |
| IndustrialOff Highway | N |
| Marine | N |
| Medium Truck | N |
| MotorCycleRV | N |
| NonVehicle Specific | N |
| Personal Watercraft | N |
| Rod Connection | Plastic socket |
| Rod Dia (IN) | 0.315 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | Plastic socket |
| Small Engine | N |
| Snowmobile | N |
This part fits 2 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2012 | Nissan | LEAF | Right | |
| 2011 | Nissan | LEAF | Right |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
