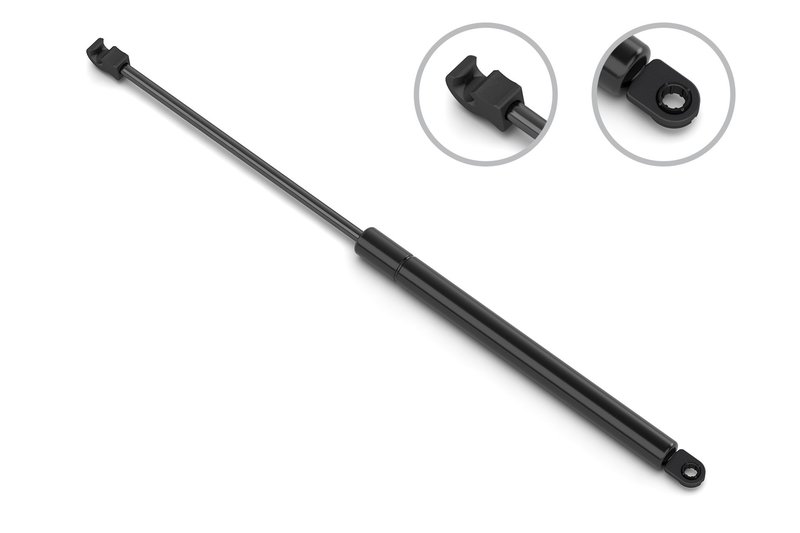

Stabilus 5B-341452 Hatch Lift Support

Overview of Stabilus 5B-341452 Gas Spring for Volvo 780

The Stabilus 5B-341452 gas spring is engineered to provide reliable support and controlled motion for Volvo 780 applications. Designed with precise dimensions and a plastic hook rod connection, this gas spring ensures consistent performance in demanding environments.

• Compressed length: 208.5 mm (8.209 inches)
• Extended length: 358 mm (14.094 inches)
• Rod diameter: 6 mm (0.236 inches)
• Tube diameter: 15 mm
• Force: 180 N (40 lbs)
• Rod connection type: Plastic hook
• Body diameter: 15 mm (0.591 inches)

Technical Details and Specifications

This Stabilus gas spring, part number 5B-341452, features a compact design with a compressed length of 208.5 mm and an extended length of 358 mm, making it suitable for precise applications on the Volvo 780. The 6 mm rod diameter combined with a 15 mm tube diameter provides a balanced strength-to-weight ratio. The plastic hook rod connection facilitates straightforward installation and secure attachment. With a force rating of 180 Newtons (40 pounds), this gas spring offers consistent support for controlled lifting and lowering motions.

Compatible Applications for Volvo 780

This gas spring is specifically compatible with Volvo 780 models, ensuring proper fitment and function. It is not designed for agricultural equipment, heavy trucks, motorcycles, or marine use. The 5B-341452 is ideal for applications requiring precise force and length specifications, such as hood supports, access panels, or other mechanical assist functions on the Volvo 780.

• Supports smooth opening and closing of hoods or panels
• Maintains controlled motion to prevent sudden drops
• Replaces worn or damaged gas springs on Volvo 780
• Helps reduce operator fatigue during maintenance tasks
• Ensures safety by providing consistent force support

Installation Notes and Tips

When installing the Stabilus 5B-341452 gas spring on a Volvo 780, ensure the plastic hook connections are securely engaged to prevent detachment during operation. Verify the orientation of the gas spring matches the original equipment to maintain proper force direction. Avoid exposure to extreme temperatures or corrosive environments to prolong service life. Regular inspection for wear or damage is recommended to maintain optimal performance.

Quality Assurance and Warranty

Stabilus gas springs are manufactured to meet stringent quality standards, ensuring durability and reliable operation. While specific warranty details for part number 5B-341452 are not provided here, Stabilus products typically come with manufacturer-backed warranties covering defects in materials and workmanship. For detailed warranty information, consult Stabilus or authorized distributors.
