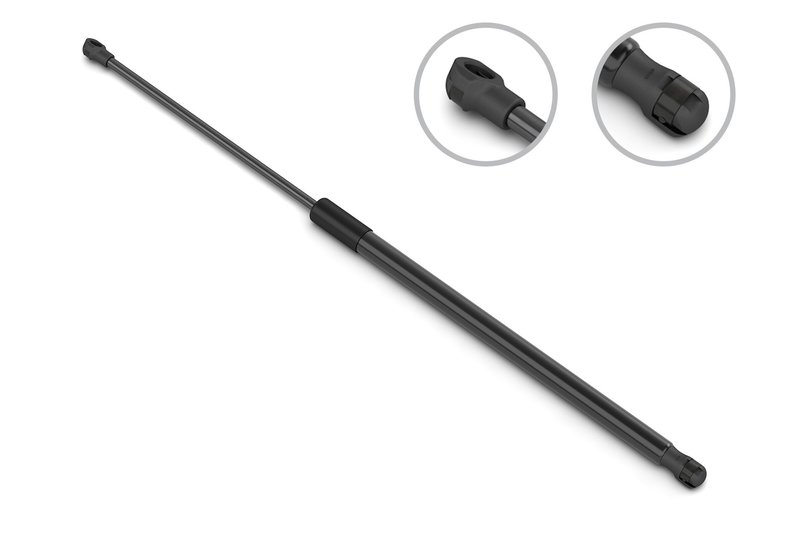

Stabilus 5B-397953 Hood Lift Support

Overview of Stabilus Hood Lift Support 5B-397953

The Stabilus Hood Lift Support 5B-397953 is engineered for reliable performance on Porsche Macan vehicles. Designed to provide consistent hood support, this gas strut ensures smooth and controlled lifting and holding of the hood for maintenance and inspection tasks.

• Compatible with Porsche Macan models
• Compressed length: 199 mm (7.835 inches)
• Extended length: 300 mm (11.811 inches)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 19 mm
• Force rating: 570 N (128 lbs)
• Rod end attachment diameter: 10 mm (0.394 inches)
• Plastic socket rod connection for secure fitment
• Non-engine specific, body category part

Technical Details and Specifications

This Stabilus hood lift support features a compressed length of 199 mm and extends up to 300 mm, providing optimal range for hood operation on the Porsche Macan. The rod diameter measures 8 mm, while the tube diameter is 19 mm, ensuring durability and strength under regular use. With a force output of 570 Newtons (128 pounds), this gas strut offers sufficient lift assistance to hold the hood securely in place. The rod end uses a plastic socket connection with a 10 mm diameter attachment, designed for easy installation and reliable retention.

Applications and Problem Solving

• Replaces worn or weak hood lift supports on Porsche Macan
• Prevents hood from slamming shut during maintenance
• Eliminates difficulty in manually holding the hood open
• Restores smooth and controlled hood operation
• Addresses rattling or loose hood support issues

Installation Notes and Tips

Installation of the Stabilus 5B-397953 hood lift support requires removal of the old strut and attachment of the new unit using the existing mounting points. The plastic socket rod connection allows for straightforward snap-on installation. It is recommended to support the hood securely during replacement to avoid injury. No additional hardware kit is included, so retain original mounting clips and bolts. Verify the orientation and length before final installation to ensure proper fitment on the Porsche Macan.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive gas springs and lift supports, known for consistent quality and durability. This hood lift support is manufactured to meet OEM specifications for the Porsche Macan. While no specific warranty details are provided, Stabilus products typically come with manufacturer-backed quality assurance to ensure reliable performance over time.
