OE Quality
60-Day Returns

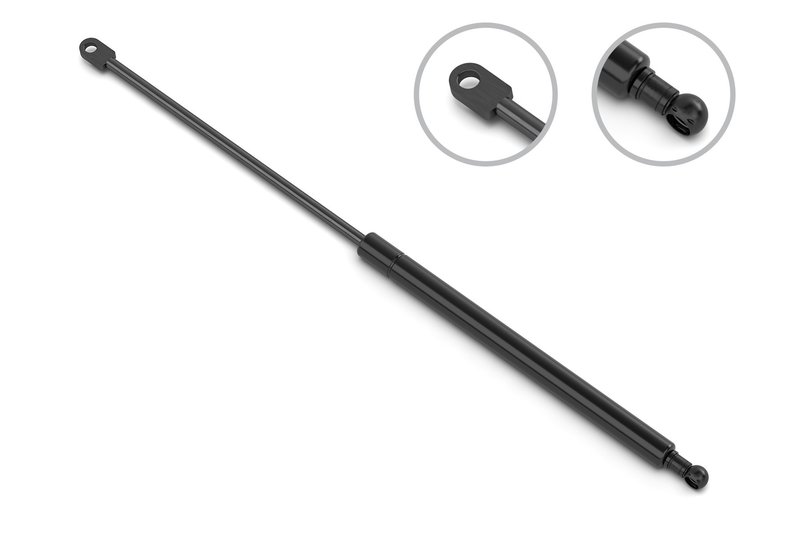

Stabilus 5B-4043KY Back Glass Lift Support
Back Glass Lift Support for BMW 525i, 528i, 540i
This Stabilus back glass lift support is built for rear glass lift applications on select BMW models. It provides controlled opening and holding force for the rear glass, helping restore smooth operation on the 2001-2003 BMW 525i, 1999-2003 BMW 540i, and 1999-2000 BMW 528i.
Key Features
- Brand: Stabilus
- Part number: 5B-4043KY
- Force rating: 560 N / 126 lb
- Extended length: 243 mm (9.567 in)
- Compressed length: 172.5 mm (6.791 in)
- Rod diameter: 8 mm (0.315 in)
- Tube diameter: 19 mm (0.748 in)
- Rod connection: metal blade
- Tube connection: metal socket
- Direct replacement style for rear glass lift support service
Detailed Description
The Stabilus 5B-4043KY back glass lift support is specified for BMW rear glass applications where consistent lift assistance and secure hold-open performance are needed. With a 560 N force rating, metal blade rod connection, and metal socket tube connection, this lift support is built around the dimensions and attachment style required for the listed BMW 525i, 528i, and 540i fitments. If you are replacing a worn rear hatch glass strut on a BMW 525i, BMW 528i, or BMW 540i, this part number 5B-4043KY matches the application details needed for proper fitment.
This part cross-references AMS Automotive 6696 for the same application.
What It Helps Solve
- Rear glass that drops instead of staying open
- Weak or slow lift assist at the back glass
- Uneven or inconsistent opening effort
- Noise or binding from a worn lift support
- Loss of hold-open support on the rear glass
Installation Notes and Tips
Verify the compressed length, extended length, and end fittings before installation. Compare the existing support to part number 5B-4043KY to confirm the metal blade and metal socket attachment style. Support the rear glass during removal and replacement to prevent sudden movement. After installation, cycle the glass several times to confirm smooth operation and secure retention.
Quality Assurance
Stabilus is a recognized OE supplier in gas spring and lift support applications, and this back glass lift support is built to the dimensional and force specifications listed for the confirmed BMW fitments.
| Brand | Stabilus |
|---|---|
| Part Number | 5B-4043KY |
| Y | |
| Y | |
| Body | 0.748 |
| Compressed Length | 6.791 |
| Compressed Length | 172.5 |
| Extended Length | 9.567 |
| Extended Length | 243 |
| Force (N) | 560 |
| Force Lbs | 126 |
| Hardware Kit | NO |
| Rod Connection | METAL BLADE |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.327 |
| Rod End Attachment Dia (MM) | 8.3 |
| Shaft | 0.315 |
| Shaft Connection | METAL BLADE |
| Tube Connection | METAL SOCKET |
| Tube Dia (IN) | 0.748 |
| Tube Diameter | 19 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
This part fits 10 vehicles. Search below:
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2003 | BMW | 525i | N/A | ||
| 2003 | BMW | 540i | N/A | ||
| 2002 | BMW | 525i | Wagon | N/A | |
| 2002 | BMW | 540i | Wagon | N/A | |
| 2001 | BMW | 525i | Wagon | N/A | |
| 2001 | BMW | 540i | Wagon | N/A | |
| 2000 | BMW | 528i | N/A | ||
| 2000 | BMW | 540i | N/A | ||
| 1999 | BMW | 528i | N/A | ||
| 1999 | BMW | 540i | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
