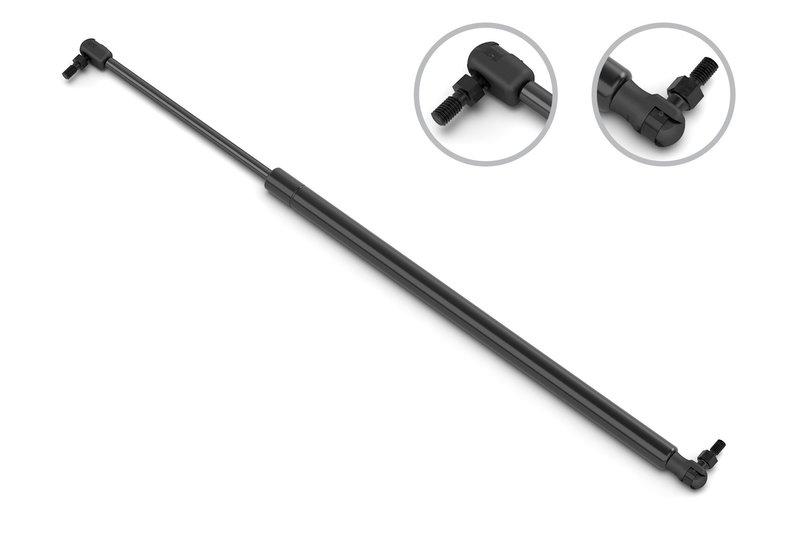

Stabilus 5B-414666 Hatch Lift Support

Overview of Stabilus 5B-414666 Gas Spring for Mitsubishi Eclipse

The Stabilus 5B-414666 gas spring is engineered to provide reliable support and smooth operation for your Mitsubishi Eclipse. Designed with precise dimensions and force specifications, this gas spring ensures consistent performance and durability.

• Compressed length: 246.5 mm (9.705 inches)
• Extended length: 360 mm (14.173 inches)
• Rod diameter: 10 mm (0.394 inches)
• Tube diameter: 22 mm
• Force: 940 N (211 lbs)
• Rod connection: Plastic socket with ball stud
• Compatible specifically with Mitsubishi Eclipse models

Technical Details and Specifications

The Stabilus 5B-414666 gas spring features a robust design with a 10 mm rod diameter and a 22 mm tube diameter, providing a balanced combination of strength and smooth motion. Its compressed length measures 246.5 mm, extending up to 360 mm to accommodate the required range of motion. The gas spring delivers a force of 940 Newtons (211 pounds), suitable for applications requiring moderate lifting and support force. The rod end attachment uses a plastic socket with a ball stud, ensuring secure and flexible connection points.

Applications and Problem Solving

This gas spring is designed for use in Mitsubishi Eclipse vehicles, offering reliable support for components such as hoods, trunks, or tailgates. It addresses common issues including:

• Difficulty in lifting or holding open vehicle panels
• Uneven or jerky motion during opening and closing
• Wear and failure of original gas springs
• Insufficient force to maintain panel position
• Corrosion or damage to existing gas springs

Installation Notes and Tips

When installing the Stabilus 5B-414666 gas spring on your Mitsubishi Eclipse, ensure the following:

• Verify the orientation of the rod and tube for proper operation
• Use compatible mounting points with plastic socket and ball stud connections
• Do not compress the gas spring manually beyond its specified limits
• Lubricate mounting points if necessary to prevent wear
• Check for secure attachment to avoid rattling or detachment

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of gas springs with a focus on quality and reliability. The 5B-414666 gas spring undergoes rigorous testing to meet industry standards. While specific warranty details may vary, Stabilus products typically include coverage against manufacturing defects. For precise warranty information, consult the product documentation or manufacturer resources.
