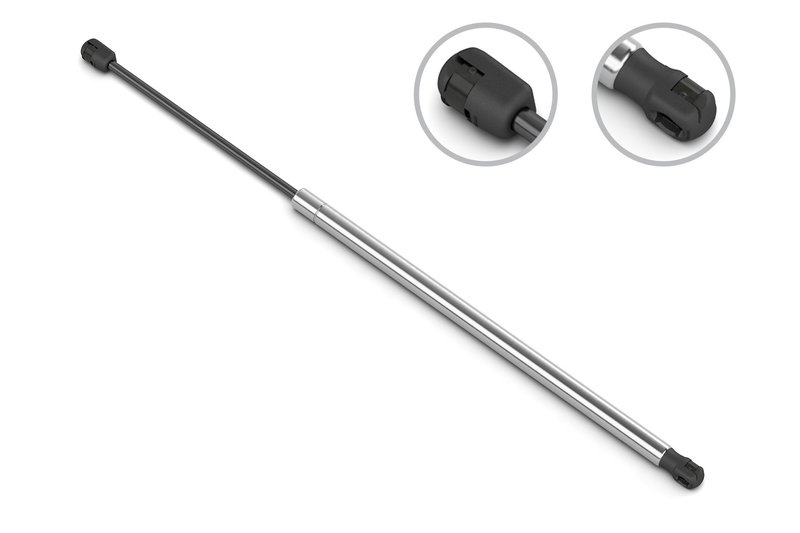

Stabilus 5B-4173XB Deck Lid Lift SupportOE Quality 60-Day Returns
Part #: 5B-4173XB

Stabilus 5B-4173XB Deck Lid Lift Support

4 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$24.44Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Volkswagen, Passat
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Deck Lid Lift Support options

OE-Style Gas Strut for Volkswagen Passat

This Stabilus gas spring is built for the Volkswagen Passat and matches the OE-style dimensions and force needed for proper lift support. Part number 5B-4173XB is specified for 2002-2004 Volkswagen Passat applications, including 2004 Passat models built up to chassis/VIN 3B-4-080 000.

  • Brand: Stabilus
  • Part number: 5B-4173XB
  • Extended length: 279 mm (10.984 in)
  • Compressed length: 184 mm (7.244 in)
  • Force rating: 520 N / 117 lb
  • Rod diameter: 8 mm (0.315 in)
  • Tube diameter: 20 mm (0.787 in)
  • Rod connection: plastic socket
  • Tube connection: plastic socket
  • Rod end attachment diameter: 10 mm (0.394 in)
  • Tube end attachment diameter: 10 mm (0.394 in)

Stabilus 5B-4173XB is a direct-fit gas strut for Volkswagen Passat lift support applications that require controlled opening and steady ????????? of the panel or hatch. The measured compressed and extended lengths, along with the 520 N force rating, are important for matching the original support geometry and lift effort on the vehicle. This part cross-references OE-style applications associated with 3B5827550E and 4173XB for the same use case.

Common Problems This Part Can Address

  • Weak or failing lift support that no longer holds the panel open
  • Slow, uneven, or abrupt opening action
  • Loss of lift assistance in cold weather or after extended use
  • Difficulty keeping the hatch or panel in the raised position
  • Noise or reduced damping from an aging gas spring

Installation Notes and Tips

Verify the vehicle build date and VIN break for 2004 Volkswagen Passat models before ordering, since this part applies only to vehicles up to chassis/VIN 3B-4-080 000. Compare the compressed length, extended length, and socket-style end fittings to the original support before installation. Replace the support on the correct mounting points and confirm smooth operation after installation.

Quality Assurance

Stabilus is a recognized OE supplier for gas springs and lift supports, and this part is built to match the specified fitment and force requirements for the listed Volkswagen Passat applications.

BrandStabilus
Part Number5B-4173XB
Y
Y
Body0.787
Compressed Length7.244
Compressed Length184
Extended Length10.984
Extended Length279
Force (N)520
Force Lbs117
Hardware KitNO
Rod ConnectionPLASTIC SOCKET
Rod Dia (IN)0.315
Rod Diameter8
Rod End Attachment Dia (IN)0.394
Rod End Attachment Dia (MM)10
Shaft0.315
Shaft ConnectionPLASTIC SOCKET
Tube ConnectionPLASTIC SOCKET
Tube Dia (IN)0.787
Tube Diameter20
Tube End Attach Dia (IN)0.394
Tube End Attach Dia (mm)10

This part fits 4 vehicles. Search below:

YearMakeModelPositionNotes
2004VolkswagenPassatN/A
2004VolkswagenPassatN/ATo Chassis/VIN 3B-4-080 000
2003VolkswagenPassatN/A
2002VolkswagenPassatN/A

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
