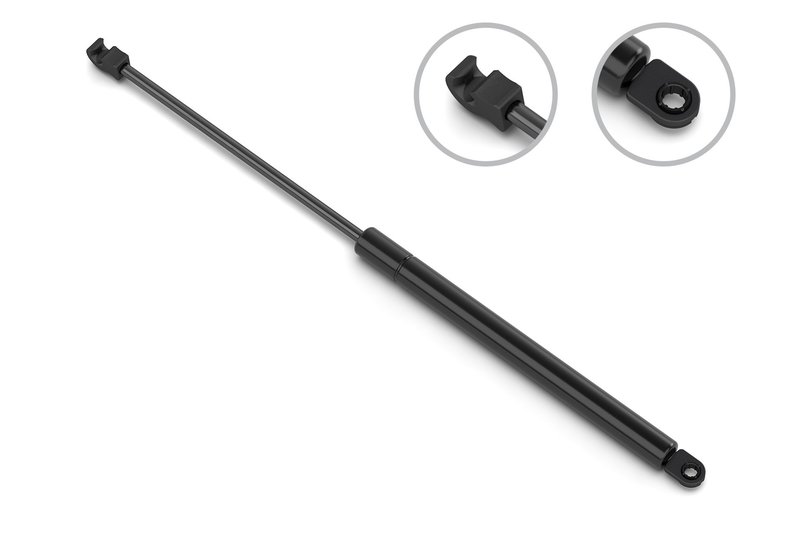

Stabilus 5B-437484 Deck Lid Lift Support

Volvo Hood Lift Support for 1983-1998 Applications

This Stabilus hood lift support is built for select Volvo models and provides controlled opening and holding force for the hood. It is a direct-fit gas spring solution for Volvo 740, 745, 760, 780, and V90 applications listed below, with Stabilus part number 5B-437484.

• Brand: Stabilus
• Part Number: 5B-437484
• Force rating: 290 N / 65 lb
• Compressed length: 213 mm / 8.386 in
• Extended length: 367 mm / 14.449 in
• Rod diameter: 6 mm / 0.236 in
• Tube diameter: 15 mm / 0.591 in
• Rod connection: plastic hook
• Tube connection: metal blade with bushing

Fitment Details

• Fits 1997-1998 Volvo V90, N/A
• Fits 1985-1992 Volvo 740, N/A, fits models without spoiler
• Fits 1987-1991 Volvo 780, N/A
• Fits 1983-1990 Volvo 760, N/A, fits models without spoiler
• Fits 1985 Volvo 745, N/A, fits models without spoiler

Use this hood gas strut to restore smooth hood operation on Volvo 740 and Volvo 760 models, as well as Volvo 745, Volvo 780, and Volvo V90 vehicles in the listed years. The 290 N force rating is matched to the application, while the plastic hook rod end and metal blade tube end provide the connection style required for these vehicles. Stabilus 5B-437484 is also cross-referenced to Gates 365300 for the same application.

Common Problems This Part Addresses

• Hood that will not stay open
• Weak or slow hood lift action
• Hood dropping during service checks
• Loss of support from a worn gas spring
• Uneven or inconsistent hood opening effort

Installation Notes and Tips

Verify the existing rod and tube connection styles before installation and compare the compressed and extended lengths to the original support. This part is listed for Volvo 740 and Volvo 760 models without spoiler, so confirm your vehicle configuration before ordering. Replace supports in pairs when the opposite side shows similar wear, and test hood operation after installation to confirm proper alignment and holding force.

Quality Assurance

Stabilus is a recognized OE supplier of gas springs and lift supports, and this part is built to match the specified application dimensions and force rating for consistent hood support.
