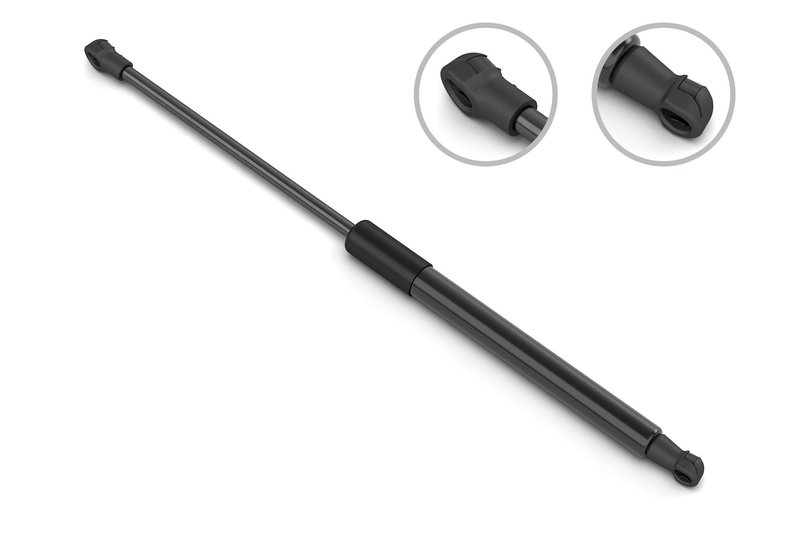

Stabilus 5B-463425 Hatch Lift Support
Stabilus 5B-463425 Gas Spring for Scion iQ
Stabilus 5B-463425 is a gas spring built for controlled lift and support in the 2012-2015 Scion iQ. With an 82 lb force rating and plastic socket connections at both ends, it is specified for direct replacement use where consistent opening and closing support is needed.
Key Features
- Brand: Stabilus
- Part number: 5B-463425
- Force rating: 365 N / 82 lb
- Compressed length: 217.5 mm (8.563 in)
- Extended length: 337.5 mm (13.287 in)
- Rod diameter: 8 mm (0.315 in)
- Tube diameter: 18 mm (0.709 in)
- Plastic socket rod and tube connections
- Rod end and tube end attachment diameter: 10 mm (0.394 in)
Detailed Description
This Stabilus gas spring is engineered around the listed dimensions and force output to match the original support geometry on the Scion iQ. The 5B-463425 part number is also referenced in interchange listings, including Tuff Support 613775, which helps confirm application matching for the same vehicle use case. For buyers searching for a Scion iQ lift support, hatch support, or rear liftgate gas strut replacement, this part number provides a direct reference point.
Compatible With 2012-2015 Scion iQ. Fits 2012-2015 Scion iQ, N/A. Fits 2012-2015 Scion iQ, N/A. The fitment data shows a single vehicle application, so matching the compressed length, extended length, and socket style is important when replacing the original support.
Common Problems This Part Can Address
- Liftgate or hatch that drops instead of staying open
- Weak or slow opening action on the supported panel
- Uneven support caused by a worn gas strut
- Loss of holding force in cold weather or with age
- Noise or binding from an aging support assembly
Installation Notes and Tips
Before ordering, compare the original strut’s compressed length, extended length, rod diameter, tube diameter, and end fittings to the specifications listed here. Confirm that the plastic socket connection style matches the vehicle’s original mounting points on the Scion iQ. During installation, support the hatch or panel securely and transfer the support carefully to avoid stressing the mounting clips.
Quality Assurance
Stabilus is a recognized gas spring manufacturer, and this part is identified by the Stabilus 5B-463425 number for application matching. Use the listed dimensions and force rating to verify correct replacement selection for the 2012-2015 Scion iQ.
| Brand | Stabilus |
|---|---|
| Part Number | 5B-463425 |
| Y | |
| Y | |
| Body | 0.709 |
| Compressed Length | 8.563 |
| Compressed Length | 217.5 |
| Extended Length | 13.287 |
| Extended Length | 337.5 |
| Force (N) | 365 |
| Force Lbs | 82 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.709 |
| Tube Diameter | 18 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2015 | Scion | iQ | N/A | |
| 2014 | Scion | iQ | N/A | |
| 2013 | Scion | iQ | N/A | |
| 2012 | Scion | iQ | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
