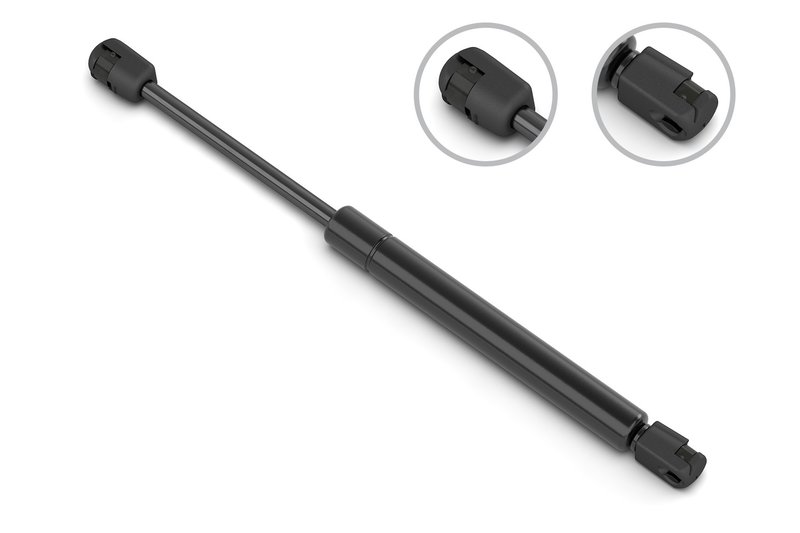

Stabilus 5B-475167
| Brand | Stabilus 5B-475167 |
|---|---|
| 0.315 | Y |
| Compressed Length | 195.5 |
| Compressed Length | 7.697 |
| Rod Diameter | 8 |
| Tube Diameter | 18 |
| Extended Length | 10.965 |
| Extended Length | 278.5 |
| Threads Per Inch | Y |
| Agricultural Equipment | N |
| Body | 0.709 |
| Engine Specific | N |
| Force (N) | 300 |
| Force Lbs | 67 |
| Hardware Kit | No |
| Heavy Truck | N |
| High Performance | N |
| IndustrialOff Highway | N |
| Marine | N |
| Medium Truck | N |
| MotorCycleRV | N |
| NonVehicle Specific | N |
| Personal Watercraft | N |
| Rod Connection | Plastic socket |
| Rod Dia (IN) | 0.315 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | Plastic socket |
| Small Engine | N |
| Snowmobile | N |
| Fits | Chevrolet · 2 vehicles |
OE-style replacement. Built as a gas spring for controlled lift and support.
Plastic socket ends. Designed with socket connections for straightforward attachment.
Force matched. 300 N output helps deliver consistent holding performance.
Cross-references AMS Automotive 6866, Stabilus 5B-475167 and 819-7088 for the same application. See all 13.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Product Overview
The Stabilus 5B-475167 is a gas spring built for controlled lift and support in the specified application. It uses plastic socket connections and a 300 N force rating to provide smooth movement and consistent holding force.
Compatible with 2014-2015 Chevrolet Camaro models without a spoiler, this Stabilus gas spring is identified by part number 5B-475167. The compact compressed length and extended length help match the original application geometry for proper operation.
Key Features
- 300 N force rating for controlled support
- Plastic socket rod and tube connections
- Compact gas spring design with 195.5 mm compressed length
- 278.5 mm extended length for the specified fitment
- Stabilus part number 5B-475167
Detailed Description
Stabilus 5B-475167 is a replacement gas spring engineered for the listed Chevrolet Camaro application. The unit measures 195.5 mm compressed and 278.5 mm extended, with an 8 mm rod diameter and 18 mm tube diameter, helping it match the dimensional requirements of the original support strut. The 300 N output provides the lifting and holding force needed for smooth, controlled operation.
This part cross-references AMS Automotive 6866 for the same application. If you are replacing a worn support on a 2014-2015 Chevrolet Camaro, part number 5B-475167 offers a direct match for the specified non-spoiler configuration.
Common Uses
- Slow or weak lift action
- Inconsistent holding force
- Drooping or unsupported movement
- Noise from a worn gas spring
Installation Notes
Verify the vehicle configuration before installation, since this application is listed for Camaro models without a spoiler. Confirm the compressed length, extended length, and socket-style connections against the original part before removal. Part number 5B-475167 should be matched to the existing support strut for proper fit and function.
Quality Assurance
Stabilus is a recognized supplier of gas springs and motion-control components. The 5B-475167 is built to the dimensional and force specifications listed for the application, supporting consistent replacement performance.
| Year | Make | Model | Body Type | Notes |
|---|---|---|---|---|
| 2015 | Chevrolet | Camaro | Coupe | Fits models without spoiler |
| 2014 | Chevrolet | Camaro | Coupe | Fits models without spoiler |
