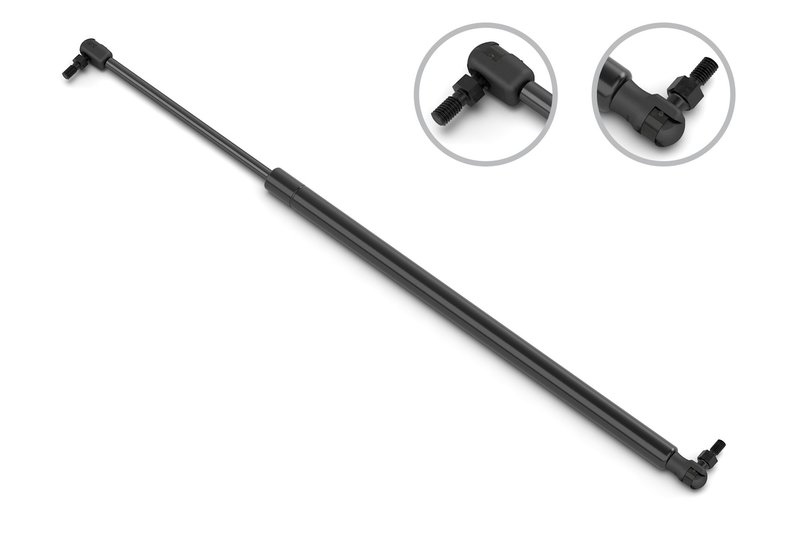

Stabilus 5B-484934 Deck Lid Lift Support
Stabilus 5B-484934 Gas Strut for Eclipse
Restore controlled lift support with this Stabilus gas strut, part number 5B-484934. It is built for the Mitsubishi Eclipse applications listed below and uses a plastic socket with ball stud connection at both ends for a direct OE-style replacement.
- Compressed length: 185.5 mm (7.303 in.)
- Extended length: 278 mm (10.945 in.)
- Rod diameter: 10 mm (0.394 in.)
- Tube diameter: 22 mm (0.866 in.)
- Force rating: 400 N (90 lb.)
- Plastic socket with ball stud rod, shaft, and tube connections
Fitment Details
Fits 2001 Mitsubishi Eclipse, w/ Spoiler.
Fits 2002-2005 Mitsubishi Eclipse, w/ Spoiler and/or wiper.
This part cross-references AMS Automotive 4137 and Tuff Support 614090 for the same application.
Product Description
The Stabilus 5B-484934 gas spring is specified for Mitsubishi Eclipse lift support applications where consistent opening and closing force is needed. With a 400 N force rating, 10 mm rod diameter, and 22 mm tube diameter, it matches the dimensional and connection requirements shown in the product data. The 185.5 mm compressed length and 278 mm extended length help maintain proper travel for the listed Eclipse spoiler and rear wiper configurations. If you are replacing a worn lift support on a Mitsubishi Eclipse, 5B-484934 provides a direct-fit service part reference for the exact vehicle years shown.
Common Problems This Part Addresses
- Rear hatch, spoiler, or liftgate that no longer stays open
- Weak or slow opening action from a worn gas strut
- Dropping or uneven support when the panel is raised
- Loss of holding force in cold weather or after extended use
- Noise or binding caused by an aging lift support
Installation Notes and Tips
Verify the existing strut length, end fittings, and mounting style before installation. Match the plastic socket with ball stud connection to the vehicle’s original attachment points on the Mitsubishi Eclipse. Replace only with the correct application listed for your year and equipment package, and confirm the spoiler and/or rear wiper configuration before ordering. Support the panel securely during removal and installation to prevent sudden movement.
Quality Assurance
Stabilus is a recognized OE supplier of gas springs and lift supports, and this part is built to the dimensional and force specifications listed above for the confirmed Eclipse applications.
| Brand | Stabilus |
|---|---|
| Part Number | 5B-484934 |
| Y | |
| Y | |
| Body | 0.866 |
| Compressed Length | 7.303 |
| Compressed Length | 185.5 |
| Extended Length | 10.945 |
| Extended Length | 278 |
| Force (N) | 400 |
| Force Lbs | 90 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET WITH BALL STUD |
| Rod Dia (IN) | 0.394 |
| Rod Diameter | 10 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.394 |
| Shaft Connection | PLASTIC SOCKET WITH BALL STUD |
| Tube Connection | PLASTIC SOCKET WITH BALL STUD |
| Tube Dia (IN) | 0.866 |
| Tube Diameter | 22 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Mitsubishi | Eclipse | N/A | w/ Spoiler and/or wiper |
| 2004 | Mitsubishi | Eclipse | N/A | w/ Spoiler and/or wiper |
| 2003 | Mitsubishi | Eclipse | N/A | w/ Spoiler and/or wiper |
| 2002 | Mitsubishi | Eclipse | N/A | w/ Spoiler and/or wiper |
| 2001 | Mitsubishi | Eclipse | N/A | w/ Spoiler |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
