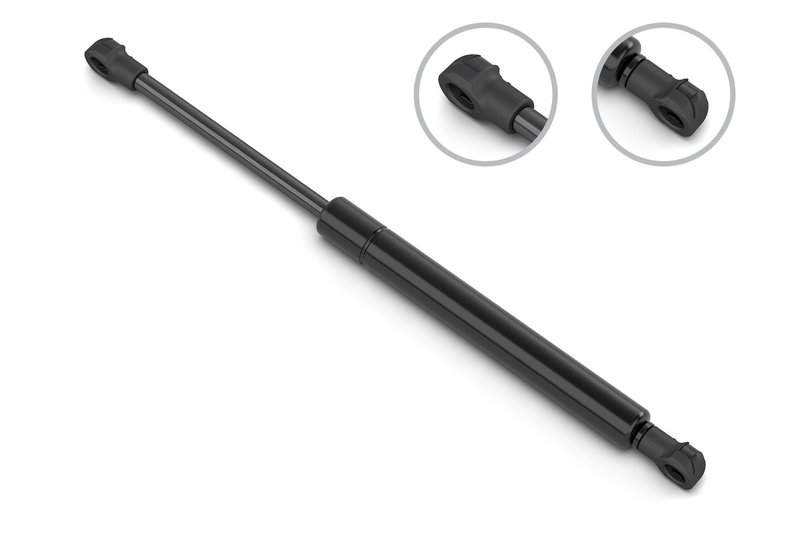

Stabilus 5B-537040 Deck Lid Lift Support
Stabilus 5B-537040 Gas Spring Overview
The Stabilus 5B-537040 gas spring is built for controlled lift and support in automotive applications that require smooth opening and closing action. With a 320 N (72 lb) force rating, 235 mm extended length, and 167 mm compressed length, it is a direct-fit style replacement for select Nissan Maxima models with a spoiler.
Use this Stabilus 5B-537040 gas strut when you need consistent support, measured damping, and OE-style plastic socket connections. It is sized with an 8 mm rod diameter and 18 mm tube diameter for applications that match the listed dimensions.
Key Features
- Brand: Stabilus
- Part number: 5B-537040
- Force rating: 320 N / 72 lb
- Extended length: 235 mm (9.252 in)
- Compressed length: 167 mm (6.575 in)
- Rod diameter: 8 mm (0.315 in)
- Tube diameter: 18 mm (0.709 in)
- Plastic socket rod and tube connections
- Rod end and tube end attachment diameter: 10 mm (0.394 in)
Detailed Description
The Stabilus 5B-537040 is a gas spring engineered for controlled motion in vehicle lift-support applications. Its 320 N force rating and compact stroke dimensions make it suitable for replacement use where the original support matches the same length, force, and plastic socket attachment style. This part cross-references ACI 84078 and AMS Automotive 4078 for the same application. It also cross-references common interchange numbers including 84430-ZE50A and 819-6155.
Compatible With 2007-2008 Nissan Maxima, N/A, w/ Spoiler. Compatible With 2007-2008 Nissan Maxima, N/A, w/ Spoiler. The Stabilus 5B-537040 is a fitment-specific replacement for this application and should be matched to the original strut dimensions before installation.
What It Helps Address
- Weak or failing lift support on the specified Nissan Maxima application
- Hatch, lid, or spoiler-mounted panel that no longer stays open properly
- Uneven or inconsistent opening and closing resistance
- Loss of controlled motion caused by worn gas pressure
- Replacement needs where the original support uses plastic socket ends
Installation Notes and Tips
Verify the compressed length, extended length, force rating, and socket-style end fittings against the original part before installation. Confirm the vehicle application as 2007-2008 Nissan Maxima with spoiler equipment, since fitment is specific to that configuration. Inspect the mounting points for wear or damage and replace any worn attachment hardware only if required by the vehicle setup.
Quality Assurance
Stabilus is a recognized manufacturer of gas springs and lift supports used in automotive applications. The 5B-537040 is built to match the listed dimensions and attachment style for direct replacement use on the confirmed Nissan Maxima fitment.
| Brand | Stabilus |
|---|---|
| Part Number | 5B-537040 |
| Y | |
| Y | |
| Body | 0.709 |
| Compressed Length | 6.575 |
| Compressed Length | 167 |
| Extended Length | 9.252 |
| Extended Length | 235 |
| Force (N) | 320 |
| Force Lbs | 72 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.709 |
| Tube Diameter | 18 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
This part fits 2 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Nissan | Maxima | N/A | w/ Spoiler |
| 2007 | Nissan | Maxima | N/A | w/ Spoiler |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
