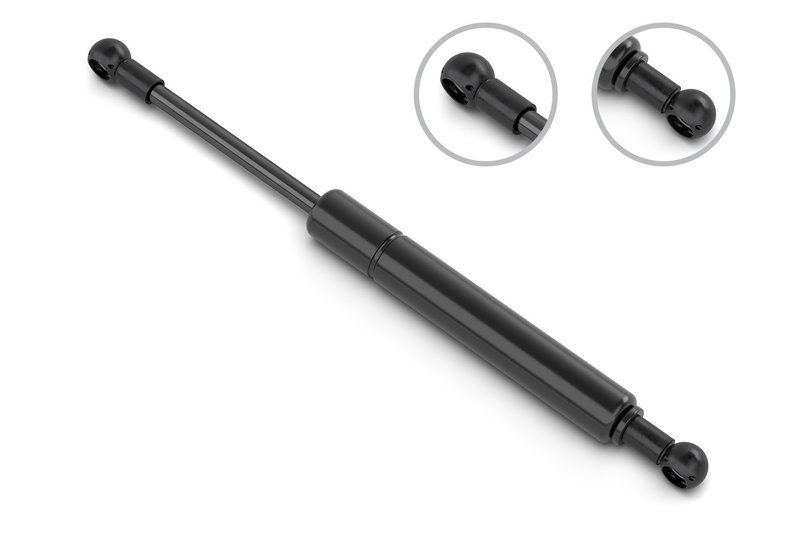

Stabilus 5B-5768ZF Hatch Lift Support

Overview of Stabilus Gas Spring for Volvo V70 and XC70

The Stabilus gas spring part number 5B-5768ZF is engineered to provide reliable support and smooth operation for Volvo V70 and XC70 models. Designed with precise dimensions and force specifications, this gas spring ensures consistent performance in vehicle applications requiring controlled lift and support.

• Compressed length: 225 mm (8.858 inches)
• Extended length: 318 mm (12.52 inches)
• Rod diameter: 10 mm (0.394 inches)
• Tube diameter: 28 mm
• Force: 1200 N (270 lbs)
• Rod end attachment diameter: 13 mm (0.512 inches)
• Rod connection type: Metal socket

Technical Details and Specifications

This Stabilus gas spring 5B-5768ZF features a robust metal socket rod connection and a rod diameter of 10 mm, providing durability and precise fitment. The tube diameter of 28 mm supports the structural integrity required for consistent force application. With a compressed length of 225 mm and an extended length of 318 mm, this gas spring offers a stroke length suitable for various lift and support functions in Volvo V70 and XC70 vehicles. The force rating of 1200 Newtons (270 pounds) ensures adequate support for components such as tailgates, hoods, or other lift-assist applications.

Compatible Applications and Use Cases

• Replacement gas spring for Volvo V70 and XC70 tailgates or lift supports
• Supports smooth opening and closing of vehicle hatches
• Helps maintain controlled lift and positioning of heavy panels
• Prevents sudden closures and reduces wear on hinges
• Ideal for restoring factory-level performance in gas spring assemblies

Installation Notes and Tips

When installing the Stabilus 5B-5768ZF gas spring, ensure the metal socket connections are securely attached to the mounting points on the Volvo V70 or XC70. Verify the orientation matches the original equipment to maintain proper force direction. Avoid overextending the gas spring beyond its specified extended length of 318 mm to prevent damage. Lubricate mounting points if necessary to reduce friction and ensure smooth operation.

Quality Assurance and Warranty Information

Stabilus gas springs are manufactured to meet strict quality standards, ensuring reliable performance and durability. While specific warranty details for part number 5B-5768ZF may vary, Stabilus products typically come with a limited warranty covering defects in materials and workmanship. For precise warranty terms, consult the product documentation or manufacturer resources.
