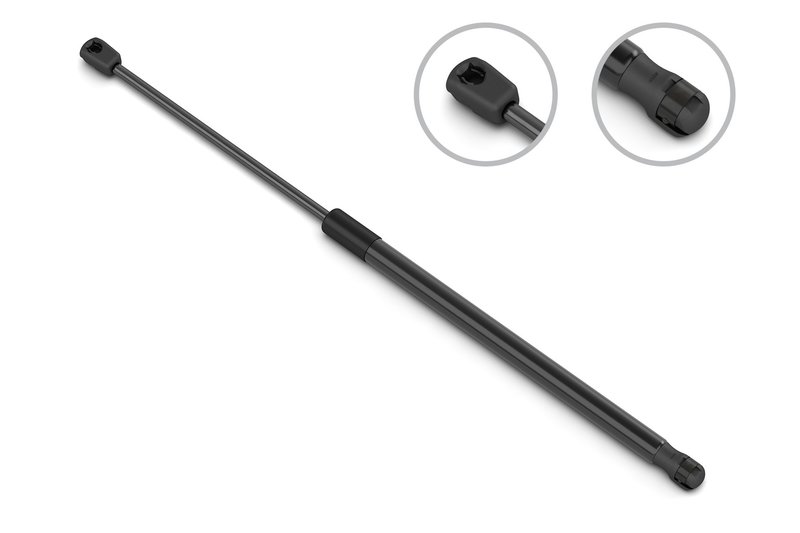

Stabilus 5B-601144 Trunk Lid Lift Support

Trunk Lid Lift Support for Camaro

This Stabilus Lift-O-Mat trunk lid lift support is built for controlled opening and closing on select Chevrolet Camaro models. It uses dynamic damping to slow the final part of travel, helping the trunk lid stop smoothly instead of snapping open or shut.

Compatible with 2016-2024 Chevrolet Camaro applications listed below, this part number 5B-601144 is an OE-style gas lift support with ball socket ends and nylon end materials for a precise fit.

Key Features

• Stabilus Lift-O-Mat trunk lid lift support
• Dynamic damping with a velocity manifold groove for controlled motion
• Gas-charged design with 400 N maximum force
• Ball socket ends for application-specific mounting
• Compressed length: 159.5 mm (6.28 in)
• Extended length: 228 mm (8.98 in)
• Stroke length: 68.5 mm (2.7 in)
• Cylinder outside diameter: 18 mm (0.709 in)
• Inner shaft diameter: 8 mm (0.315 in)

Detailed Description

Stabilus part number 5B-601144 is engineered for the trunk lid on Chevrolet Camaro models with a spoiler. It is listed for 2018-2024 Chevrolet Camaro and for 2016-2017 Chevrolet Camaro Coupe, 2nd Design, with spoiler. The Lift-O-Mat design uses controlled gas flow and custom groove geometry to manage extension speed and provide a gentle stop at the end of travel. This makes it a practical OE-style replacement when the original trunk support no longer holds the lid properly or opens with consistent control.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. Part number 5B-601144 is also referenced by interchange numbers including 601144 and 600905.

What It Helps Fix

• Trunk lid that drops too quickly when opened
• Weak lift support that no longer holds the lid up
• Harsh or abrupt trunk lid movement near full extension
• Inconsistent opening feel on a Chevrolet Camaro trunk lid
• Wear-related loss of gas pressure in the original support

Installation Notes and Tips

Verify the vehicle year, body style, and spoiler configuration before ordering. This support uses ball socket ends, so confirm the mounting points match the original part before installation. Compare the compressed length, extended length, and stroke length to the removed unit to ensure proper trunk lid operation on the Camaro.

Quality Assurance

Stabilus Lift-O-Mat products are built around application-specific damping and OE-focused engineering for controlled motion. Part number 5B-601144 is designed to deliver consistent trunk lid support for the listed Chevrolet Camaro applications.
