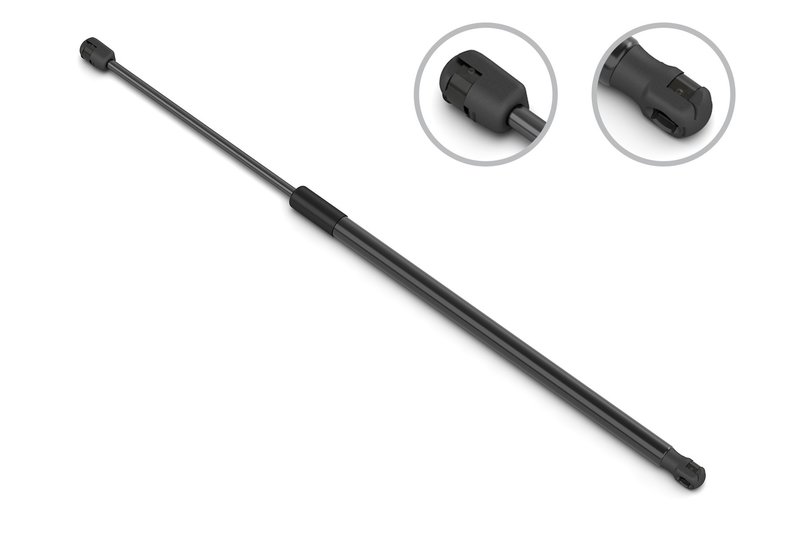

Stabilus 5B-690985

Stabilus Gas Spring for Mazda MX-5

This Stabilus gas spring, part number 5B-690985, is built for Mazda MX-5 and Mazda MX-5 Miata applications that do not use the power retractable hardtop. It delivers 100 N of force with compact OE-style dimensions for controlled lift and support.

• Brand: Stabilus
• Part number: 5B-690985
• Force rating: 100 N / 22 lb
• Compressed length: 163.5 mm (6.437 in)
• Extended length: 232.5 mm (9.154 in)
• Rod diameter: 8 mm (0.315 in)
• Tube diameter: 18 mm (0.709 in)
• Plastic socket rod and tube connections
• Rod end and tube end attachment diameter: 10 mm (0.394 in)

Fitment Details

• Fits 2022-2025 Mazda MX-5 Miata, N/A, w/o Power Retractable Hardtop
• Fits 2016-2023 Mazda MX-5, N/A, w/o Power Retractable Hardtop
• Fits 2016-2021 Mazda MX-5 Miata, N/A

Use 5B-690985 when replacing a worn gas strut on a Mazda MX-5 or Mazda MX-5 Miata with the matching non-power-retractable hardtop configuration. The compact body, 8 mm rod, and plastic socket ends follow the listed OE-style dimensions for direct replacement service. This part cross-references AMS Automotive 7021 for the same application.

Common Replacement Reasons

• Hood, hatch, or panel no longer stays open securely
• Slow or weak lift action from a fatigued gas spring
• Uneven support or reduced holding force
• Original strut shows wear at the socket ends or rod seal

Installation Notes

Match the compressed length, extended length, force rating, and socket-style connections before installation. Confirm the vehicle is one of the listed Mazda MX-5 or Mazda MX-5 Miata applications and verify the non-power-retractable hardtop requirement where noted. Inspect mounting points for wear or damage before snapping the plastic socket ends into place.

Quality Assurance

Stabilus is a recognized OE supplier of gas springs and lift supports, and part number 5B-690985 is specified with exact dimensional and force data for application matching.
