OE Quality
60-Day Returns

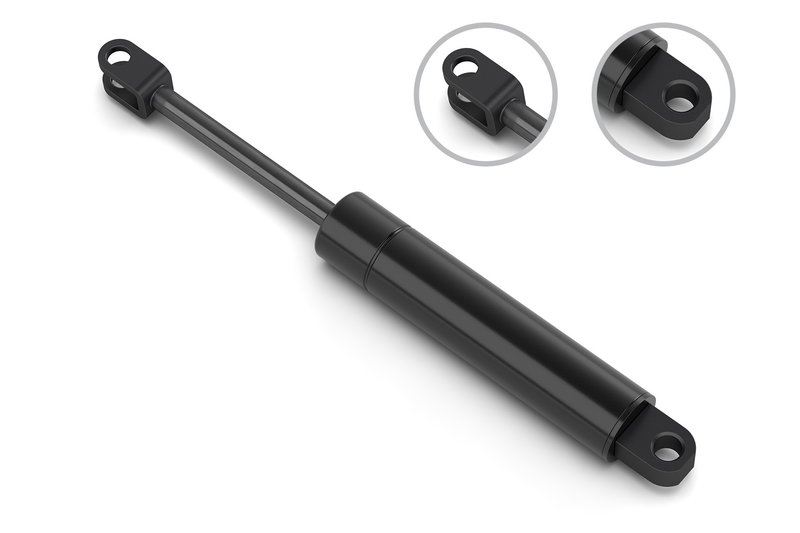

Stabilus 5B-7226BT
Stabilus Gas Spring for Mercedes-Benz 300TD
This Stabilus gas spring is built for the 1979-1981 Mercedes-Benz 300TD and is identified by part number 5B-7226BT. With a 2000 N / 450 lb force rating, it provides controlled lift and support for the rear hatch or liftgate application listed in the fitment data.
Key Features
- Brand: Stabilus
- Part number: 5B-7226BT
- Force rating: 2000 N / 450 lb
- Compressed length: 185.5 mm (7.303 in)
- Extended length: 266 mm (10.472 in)
- Rod diameter: 10 mm (0.394 in)
- Tube diameter: 29 mm (1.142 in)
- Rod connection: fork
- Tube connection: metal blade
- Direct fit for 1979-1981 Mercedes-Benz 300TD
Detailed Description
Stabilus 5B-7226BT is an OE-style gas spring specified for the Mercedes-Benz 300TD from 1979 through 1981. The listed dimensions and attachment style are important for matching the original support geometry, including the fork rod end and metal blade tube connection. This part cross-references URO 1239800064 for the same application.
For buyers searching for a Mercedes-Benz 300TD lift support, rear hatch strut, or tailgate gas spring, this part number 5B-7226BT provides the fitment and dimensional data needed to confirm the replacement before ordering. It is also referenced under 7226BT, 043303, 614197, A1239800064, SG403001, and TSG403001 in interchange listings.
What It Helps Address
- Weak or failing hatch support on a Mercedes-Benz 300TD
- Rear liftgate that drops too quickly
- Hatch that does not stay open securely
- Loss of consistent opening and closing resistance
- Noise or uneven movement from an aging gas spring
Installation Notes and Tips
Verify the compressed length, extended length, rod diameter, and end fittings against the original support before installation. Confirm that the fork and metal blade attachment points match the vehicle’s mounting hardware on the 1979-1981 Mercedes-Benz 300TD. Compare the old strut’s orientation and mounting style to avoid forcing the ends into place.
Quality Assurance
Stabilus is a recognized OE supplier of gas springs and lift supports, and this part is built to match the listed application and dimensions for accurate replacement on the Mercedes-Benz 300TD.
| Brand | Stabilus |
|---|---|
| Part Number | 5B-7226BT |
| 0.394 | Y |
| Compressed Length | 185.5 |
| Compressed Length | 7.303 |
| Rod Diameter | 10 |
| Tube Diameter | 29 |
| Extended Length | 10.472 |
| Extended Length | 266 |
| Threads Per Inch | Y |
| Agricultural Equipment | N |
| Body | 1.142 |
| Engine Specific | N |
| Force (N) | 2000 |
| Force Lbs | 450 |
| Hardware Kit | No |
| Heavy Truck | N |
| High Performance | N |
| IndustrialOff Highway | N |
| Marine | N |
| Medium Truck | N |
| MotorCycleRV | N |
| NonVehicle Specific | N |
| Personal Watercraft | N |
| Rod Connection | Fork |
| Rod Dia (IN) | 0.394 |
| Rod End Attachment Dia (IN) | 0.358 |
| Rod End Attachment Dia (MM) | 9.1 |
| Shaft | 0.394 |
| Shaft Connection | Fork |
| Small Engine | N |
| Snowmobile | N |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1981 | Mercedes-Benz | 300TD | N/A | |
| 1980 | Mercedes-Benz | 300TD | N/A | |
| 1979 | Mercedes-Benz | 300TD | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
