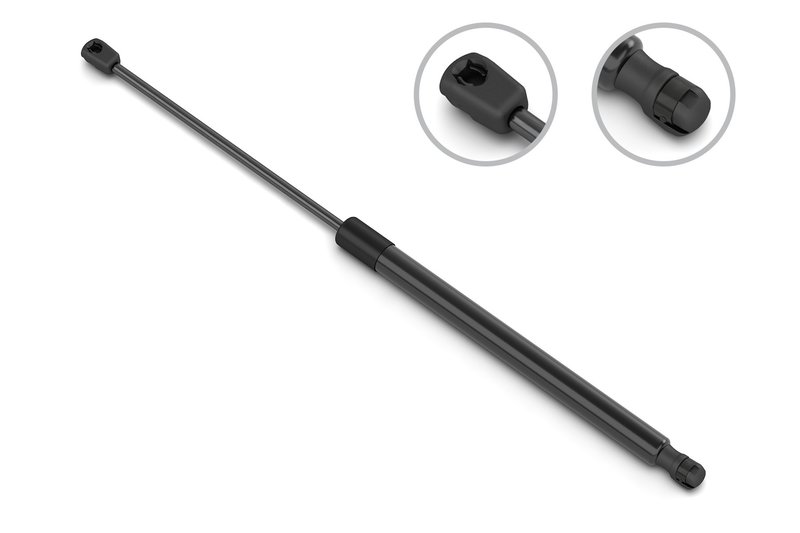

Stabilus 5B-746659 Hood Lift Support

Reliable Hood Lift Support for Nissan Murano

The Stabilus hood lift support 5B-746659 is designed to provide consistent and smooth hood operation for Nissan Murano models. Engineered with precise dimensions and force ratings, this hood lift support ensures safe and controlled hood lifting and holding.

• Compatible with Nissan Murano vehicles
• Compressed length: 10.453 inches (265.5 mm)
• Extended length: 14.941 inches (379.5 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force rating: 310 N (70 lbs)
• Rod connection type: Plastic socket

Technical Specifications and Features

This hood lift support from Stabilus features a rod diameter of 8 mm and a tube diameter of 18 mm, providing a balanced strength-to-weight ratio suitable for the hood weight of the Nissan Murano. The compressed length measures 10.453 inches (265.5 mm), while the extended length reaches 14.941 inches (379.5 mm), allowing for optimal hood travel and support. The force rating of 310 Newtons (70 pounds) ensures reliable lifting power without excessive strain on the hood or mounting points. The rod end attachment uses a plastic socket connection, designed for secure and quiet operation.

Purpose and Common Applications

• Supports smooth and controlled hood opening and closing
• Prevents hood from slamming shut unexpectedly
• Reduces wear on hood hinges and latch mechanisms
• Maintains hood position during vehicle maintenance or inspection
• Replaces worn or failing hood lift supports on Nissan Murano

Installation Notes and Tips

Installation of the Stabilus 5B-746659 hood lift support requires removal of the old lift support and proper alignment of the new unit. Ensure the plastic socket connections are securely attached to the hood and body mounting points. It is recommended to lift the hood carefully during installation to avoid injury. No additional hardware kit is included, so retain existing mounting clips or fasteners. Verify the compressed and extended lengths match the original part for proper fitment.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive gas springs and lift supports, known for consistent quality and durability. This hood lift support is engineered to meet OEM specifications for the Nissan Murano. While no specific warranty information is provided, Stabilus products typically come with manufacturer-backed quality assurance to ensure reliable performance over time.
