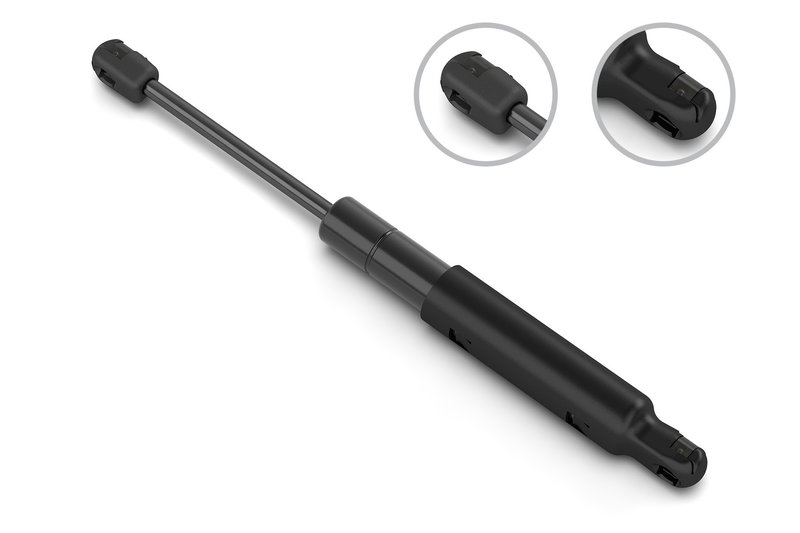

Stabilus 5B-765521 Hood Lift Support
Hood Lift Support for BMW 740i, 750i, 750Li
This Stabilus hood lift support is built for direct replacement on select BMW 7 Series models, including the 2010-2012 BMW 740i and 2011-2012 BMW 750i and 750Li. Part number 5B-765521 is specified with OE-style dimensions and a 470 N gas force for controlled hood support.
Key Features
- Stabilus hood lift support, part number 5B-765521
- Force rating: 470 N / 106 lb
- Compressed length: 179.5 mm (7.067 in)
- Extended length: 261 mm (10.276 in)
- Rod diameter: 8 mm (0.315 in)
- Tube diameter: 18 mm (0.709 in)
- Rod connection: plastic socket
- Tube connection: telescopic tube with socket
- Compatible with BMW 740i, 740Li, 750i, 750Li, 750i xDrive, 750Li xDrive, and 760Li applications listed below
Detailed Description
Stabilus 5B-765521 is a hood lift support engineered around the dimensions and connection style used on select BMW 7 Series vehicles. The 470 N gas strut rating provides the force needed to hold the hood in the open position while maintaining smooth movement during opening and closing. This replacement is listed for 2010-2012 BMW 740i, 2011-2012 BMW 740Li, 2011-2012 BMW 750i, 2011-2012 BMW 750Li, 2011-2012 BMW 750i xDrive, 2011-2012 BMW 750Li xDrive, and 2011 BMW 760Li. This part cross-references ACI 86870 and AMS Automotive 6870 for the same application.
What It Is Used For
- Restoring hood support when the hood no longer stays open
- Replacing a weak or worn gas strut on BMW 740i and 750Li models
- Correcting slow, uneven, or abrupt hood movement
- Addressing hood drop after release
- Replacing a support with incorrect length or end fittings
Installation Notes and Tips
Verify the compressed length, extended length, rod diameter, tube diameter, and socket-style connections before installation. Confirm vehicle application by year and model, including the 2012 BMW 750i xDrive note that excludes Lane Departure Warning. Compare the existing support to part number 5B-765521 before removal to ensure the replacement matches the original mounting points.
Quality Assurance
Stabilus is a recognized OE supplier for gas springs and lift supports, and this hood lift support is built to match the listed application requirements for proper fit and function.
| Brand | Stabilus |
|---|---|
| Part Number | 5B-765521 |
| 0.315 | Y |
| Compressed Length | 179.5 |
| Compressed Length | 7.067 |
| Rod Diameter | 8 |
| Tube Diameter | 18 |
| Extended Length | 10.276 |
| Extended Length | 261 |
| Threads Per Inch | Y |
| Agricultural Equipment | N |
| Body | 0.709 |
| Engine Specific | N |
| Force (N) | 470 |
| Force Lbs | 106 |
| Hardware Kit | No |
| Heavy Truck | N |
| High Performance | N |
| IndustrialOff Highway | N |
| Marine | N |
| Medium Truck | N |
| MotorCycleRV | N |
| NonVehicle Specific | N |
| Personal Watercraft | N |
| Rod Connection | Plastic socket |
| Rod Dia (IN) | 0.315 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | Plastic socket |
| Small Engine | N |
| Snowmobile | N |
This part fits 14 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2012 | BMW | 740i | N/A | |
| 2012 | BMW | 740Li | N/A | |
| 2012 | BMW | 750i | N/A | |
| 2012 | BMW | 750i xDrive | N/A | Exc.Lane Departure Warning |
| 2012 | BMW | 750Li | N/A | |
| 2012 | BMW | 750Li xDrive | N/A | |
| 2011 | BMW | 740i | N/A | |
| 2011 | BMW | 740Li | N/A | |
| 2011 | BMW | 750i | N/A | |
| 2011 | BMW | 750i xDrive | N/A | |
| 2011 | BMW | 750Li | N/A | |
| 2011 | BMW | 750Li xDrive | N/A | |
| 2011 | BMW | 760Li | N/A | |
| 2010 | BMW | 740i | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
