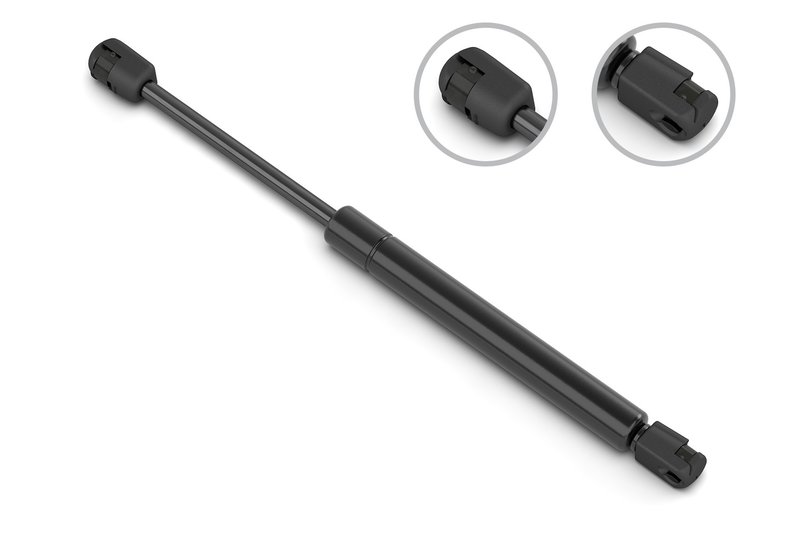

Stabilus 5B-801167 Deck Lid Lift Support
Stabilus Gas Spring for Mitsubishi Eclipse
This Stabilus gas spring, part number 5B-801167, is built for controlled lift support on select Mitsubishi Eclipse applications. With a 460 N (103 lb) force rating, it helps maintain smooth opening and holding action for panels that rely on gas-charged support.
- Brand: Stabilus
- Part number: 5B-801167
- Force rating: 460 N / 103 lb
- Compressed length: 168.5 mm (6.634 in)
- Extended length: 235.5 mm (9.272 in)
- Rod diameter: 8 mm (0.315 in)
- Tube diameter: 18 mm (0.709 in)
- Rod connection: plastic socket
- Tube connection: plastic socket
- Rod end attachment diameter: 10 mm (0.394 in)
- Tube end attachment diameter: 8 mm (0.315 in)
Fitment Details
Fits 2006-2007 Mitsubishi Eclipse, N/A. Fits 2009-2011 Mitsubishi Eclipse, N/A. This part cross-references AMS Automotive 6231 for the same application.
Product Overview
Stabilus 5B-801167 is a gas spring specified by its compressed and extended lengths, rod and tube diameters, and plastic socket end connections. Those dimensions matter when replacing a worn lift support because the correct length and force rating help the panel open and stay positioned as intended. For shoppers searching for a Mitsubishi Eclipse lift support or gas strut by part number, 5B-801167 provides a direct OE-style reference point.
Common Issues This Part Can Address
- Weak or failing lift support that no longer holds a panel open
- Slow, uneven, or uncontrolled opening action
- Panel drop after release
- Loss of support due to gas pressure decline over time
- Replacement need for a worn Mitsubishi Eclipse gas strut
Installation Notes and Tips
Verify compressed length, extended length, force rating, and socket-style end fittings before installation. Compare the existing support to Stabilus 5B-801167 to confirm the attachment diameter and overall dimensions match the vehicle application. Install with the vehicle panel securely supported and check operation after replacement.
Quality Assurance
Stabilus is a recognized OE supplier for gas springs and lift supports, and this part is built to match the listed specifications for the confirmed Mitsubishi Eclipse applications.
| Brand | Stabilus |
|---|---|
| Part Number | 5B-801167 |
| Y | |
| Y | |
| Body | 0.709 |
| Compressed Length | 6.634 |
| Compressed Length | 168.5 |
| Extended Length | 9.272 |
| Extended Length | 235.5 |
| Force (N) | 460 |
| Force Lbs | 103 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.709 |
| Tube Diameter | 18 |
| Tube End Attach Dia (IN) | 0.315 |
| Tube End Attach Dia (mm) | 8 |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2011 | Mitsubishi | Eclipse | Convertible | N/A | |
| 2010 | Mitsubishi | Eclipse | Convertible | N/A | |
| 2009 | Mitsubishi | Eclipse | Convertible | N/A | |
| 2007 | Mitsubishi | Eclipse | Convertible | N/A | |
| 2006 | Mitsubishi | Eclipse | Convertible | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
