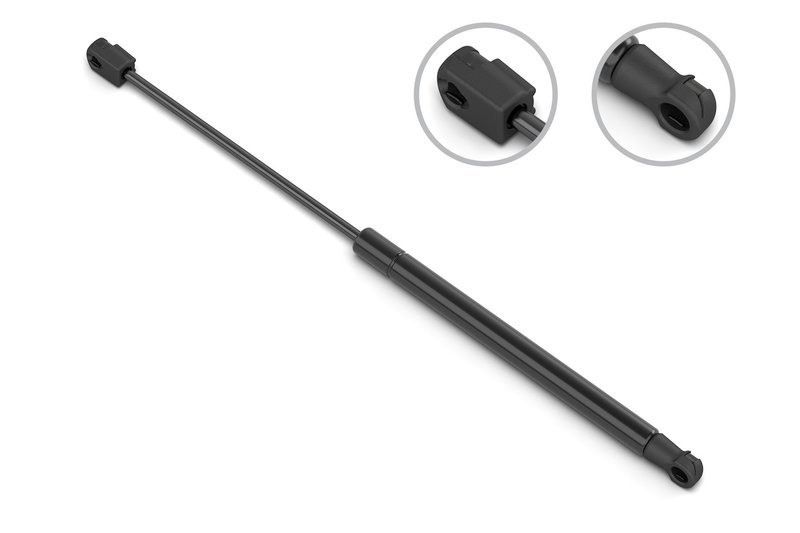

Stabilus 5B-801884 Deck Lid Lift Support

Stabilus 5B-801884 Gas Spring for Chrysler 200, Cirrus, Sebring

The Stabilus 5B-801884 is a gas spring built for controlled lift and support in select Chrysler applications. With a 285 N (64 lb) force rating, 296 mm extended length, and 193 mm compressed length, it is specified for consistent motion and secure hold in the intended vehicle fitments.

Key Features

• Brand: Stabilus
• Part number: 5B-801884
• Force rating: 285 N / 64 lb
• Extended length: 296 mm (11.654 in)
• Compressed length: 193 mm (7.598 in)
• Rod diameter: 8 mm (0.315 in)
• Tube diameter: 18 mm (0.709 in)
• Rod connection: plastic socket
• Tube connection: plastic socket
• Tube end attachment diameter: 10 mm (0.394 in)

Detailed Description

This Stabilus gas spring is engineered around the listed dimensions and attachment style for direct replacement in the confirmed Chrysler fitments. The 5B-801884 uses plastic socket connections at both ends and a 10 mm tube-end attachment diameter, making it important to match the original length, force, and end fittings before installation. It is listed for 2011-2013 Chrysler 200, 2010 Chrysler Cirrus, and 2010 Chrysler Sebring. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Solve

• Weak or failing lift support that no longer holds position
• Slow, uneven, or uncontrolled opening and closing motion
• Loss of support force in the original gas spring
• Fitment issues caused by mismatched length or end connections

Installation Notes and Tips

Verify the original part number, compressed length, extended length, rod diameter, tube diameter, and socket-style connections before ordering. Compare the existing support to the Stabilus 5B-801884 to confirm the force rating and attachment dimensions match the vehicle’s original specification. For best results, replace gas springs in pairs only when the vehicle design and service procedure call for it, and support the panel or hatch during removal and installation.

Quality Assurance

Stabilus is a recognized OE supplier for gas spring and lift support applications, and this part is built to the listed dimensional and force specifications for the confirmed Chrysler applications.
