OE Quality
60-Day Returns

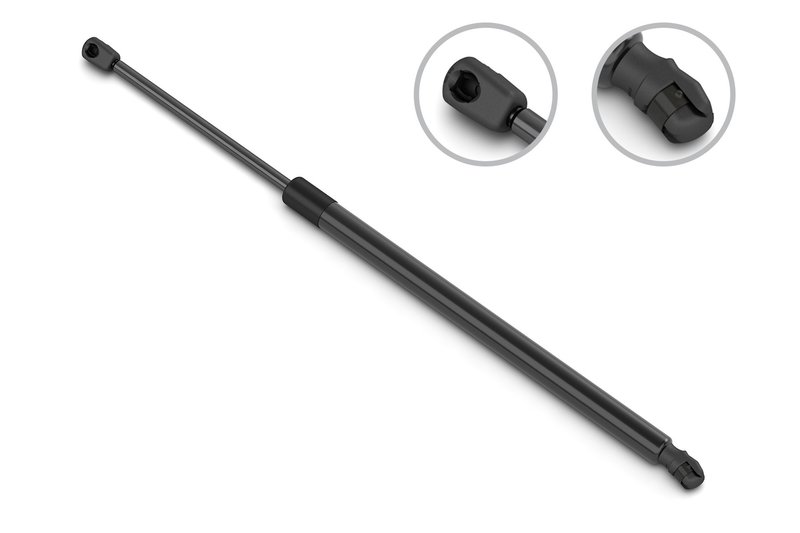

Stabilus 5B-823414 Hood Lift Support
Hood Lift Support for Nissan Frontier
This Stabilus hood lift support is built for the 2021-2025 Nissan Frontier and uses gas-charged damping for controlled hood movement. Part number 5B-823414 is engineered for application-specific performance, with a smooth opening action and a gentle stop at full extension.
- Fits 2021-2025 Nissan Frontier
- Stabilus Lift-O-Mat design with dynamic damping
- Gas type hood lift support with ball socket ends
- Compressed length: 7.46 in. (189.5 mm)
- Extended length: 11.24 in. (285.5 mm)
- Stroke length: 3.78 in. (96 mm)
- Maximum force: 116 lb (515 N)
- Cylinder outside diameter: 0.709 in. (18 mm)
- Inner shaft diameter: 0.315 in. (8 mm)
- End materials: nylon
- Mounting hardware not included
How It Works
The Lift-O-Mat design uses a precision groove in the tube wall to regulate gas flow as the hood opens and closes. That controlled damping helps the support slow the hood near the end of travel, reducing abrupt movement and improving feel. For Nissan Frontier hood service, part number 5B-823414 is a direct-fit solution built around OE-style motion control.
This part cross-references Davico Mfg 823414 for the same application.
Common Problems It Can Help Solve
- Hood drops too quickly when opened
- Hood will not stay raised during service
- Uneven or inconsistent hood lift effort
- Harsh stop at the top of hood travel
- Worn gas strut performance on a Nissan Frontier
Installation Notes and Tips
Verify the ball socket attachment points before installation and compare the compressed and extended lengths to the original support. Replace supports in a stable, supported hood position to avoid sudden movement. After installation, cycle the hood several times to confirm smooth operation and proper seating at both ends.
Quality Assurance
Stabilus is known for OE-focused motion control components, and the Lift-O-Mat line is used where precise damping and consistent hood movement are required. Part number 5B-823414 is built to deliver controlled extension and a smooth closing feel for the 2021-2025 Nissan Frontier.
| Brand | Stabilus |
|---|---|
| Part Number | 5B-823414 |
| 10035 | 0.394 |
| 10035 | 10 |
| 10036 | 0.394 |
| 10036 | 10 |
| Compressed Length | 189.5 |
| Compressed Length | 7.46 |
| End 1 Type | Ball socket |
| End 2 Type | Ball socket |
| Type | Gas |
| Maximum Force | 116 |
| Maximum Force | 515 |
| Mounting Hardware Included | No |
| Cylinder Outside Diameter | 0.709 |
| Cylinder Outside Diameter | 18 |
| Extended Length | 11.24 |
| Extended Length | 285.5 |
| End 1 Material | Nylon |
| End 2 Material | Nylon |
| Stroke Length | 3.78 |
| Stroke Length | 96 |
| Inner Shaft Diameter | 0.315 |
| Inner Shaft Diameter | 8 |
| EXT_Agricultural Equipment | N |
| EXT_Application Specific | Y |
| EXT_CarLight Truck | Y |
| EXT_Engine Specific | N |
| EXT_Heavy Truck | N |
| EXT_High Performance | N |
| EXT_IndustrialOff Highway | N |
| EXT_Marine | N |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2025 | Nissan | Frontier | N/A | |
| 2024 | Nissan | Frontier | N/A | |
| 2023 | Nissan | Frontier | N/A | |
| 2022 | Nissan | Frontier | N/A | |
| 2021 | Nissan | Frontier | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
