Stabilus 5B-823633 Deck Lid Lift SupportOE Quality 60-Day Returns
Part #: 5B-823633

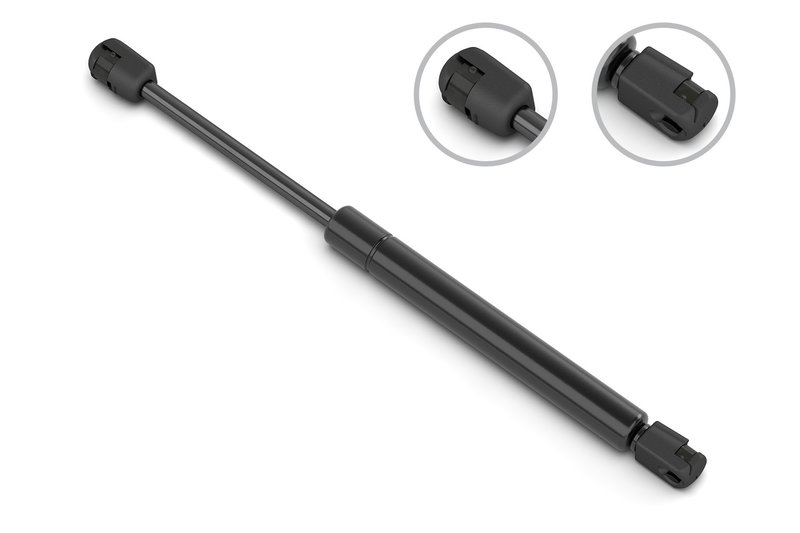

Stabilus 5B-823633 Deck Lid Lift Support

1 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$22.81Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Cadillac, CTS
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Deck Lid Lift Support options

Stabilus Gas Strut for 2003 Cadillac CTS

This Stabilus gas strut, part number 5B-823633, is built for the 2003 Cadillac CTS, 1st design application. It uses a plastic socket connection at both ends and delivers 620 N of force for controlled lift and support in the specified vehicle application.

Key Features

  • Brand: Stabilus
  • Part number: 5B-823633
  • Force rating: 620 N / 139 lb
  • Compressed length: 184 mm (7.244 in)
  • Extended length: 282 mm (11.102 in)
  • Rod diameter: 8 mm (0.315 in)
  • Tube diameter: 19 mm (0.748 in)
  • Plastic socket rod and tube connections
  • Fits 2003 Cadillac CTS, 1st design

Detailed Description

Stabilus 5B-823633 is a gas spring specified for the 2003 Cadillac CTS, 1st design. The unit measures 184 mm compressed and 282 mm extended, with an 8 mm rod and 19 mm tube, giving it the dimensions needed for the listed application. The 620 N force rating supports smooth opening and controlled holding action where the original strut has weakened or lost pressure. If you are searching for a 2003 Cadillac CTS gas strut replacement or a Stabilus 5B-823633 replacement strut, this part matches the confirmed fitment data for that vehicle.

This part cross-references Dorman - Conduct-Tite 86414 for the same application.

What It Is Used For

  • Replacing a worn gas strut that no longer holds position
  • Restoring controlled lift and lower action
  • Addressing a hatch, hood, or panel that drops too quickly
  • Reducing effort needed to open the supported component
  • Correcting uneven or inconsistent support from a failing strut

Installation Notes and Tips

Verify the existing strut length, end fittings, and force rating before installation. Confirm that the plastic socket connections match the vehicle mounting points on the 2003 Cadillac CTS, 1st design. Compare the old unit to Stabilus 5B-823633 before removal so the replacement is installed in the same orientation and position.

Quality Assurance

Stabilus is a recognized OE supplier of gas springs and lift supports, and this part is built to the listed dimensional and force specifications for the confirmed application.

BrandStabilus
Part Number5B-823633
Y
Y
Body0.748
Compressed Length7.244
Compressed Length184
Extended Length11.102
Extended Length282
Force (N)620
Force Lbs139
Hardware KitNO
Rod ConnectionPLASTIC SOCKET
Rod Dia (IN)0.315
Rod Diameter8
Rod End Attachment Dia (IN)0.394
Rod End Attachment Dia (MM)10
Shaft0.315
Shaft ConnectionPLASTIC SOCKET
Tube ConnectionPLASTIC SOCKET
Tube Dia (IN)0.748
Tube Diameter19
Tube End Attach Dia (IN)0.315
Tube End Attach Dia (mm)8

This part fits 1 vehicles. Search below:

YearMakeModelPositionNotes
2003CadillacCTSN/A1st design

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
