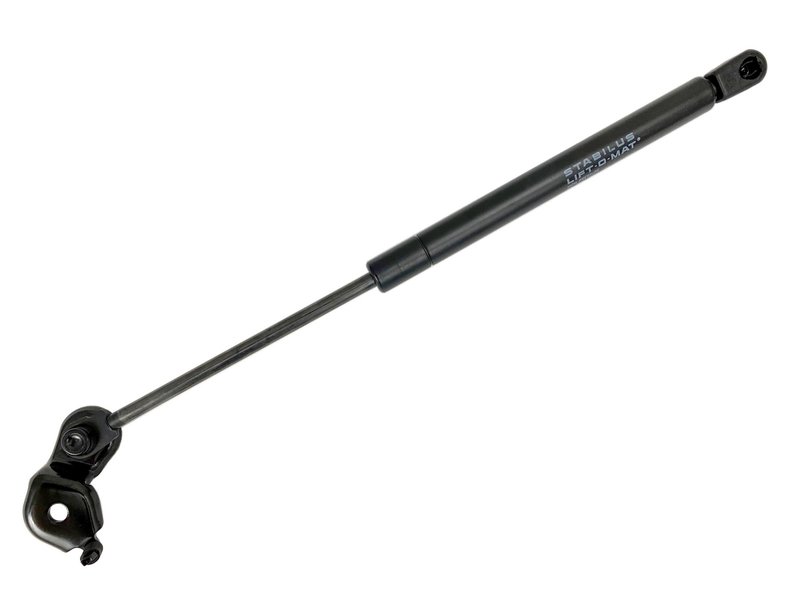

Stabilus 5B-8242XM Hood Lift Support - Right
| Brand | Stabilus 5B-8242XM |
|---|---|
| Position | Right |
| Y | |
| Y | |
| Body | 0.709 |
| Compressed Length | 9.547 |
| Compressed Length | 242.5 |
| Extended Length | 14.921 |
| Extended Length | 379 |
| Force (N) | 407 |
| Force Lbs | 92 |
| Hardware Kit | NO |
| Rod Connection | METAL BLADE WITH BRACKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.323 |
| Rod End Attachment Dia (MM) | 8.2 |
| Shaft | 0.315 |
| Shaft Connection | METAL BLADE WITH BRACKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.709 |
| Tube Diameter | 18 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
| Fits | Toyota · 5 vehicles |
OE direct replacement. Restores smooth hood support with a 92 lb gas spring.
Metal blade with bracket. Durable rod connection for secure attachment.
Plastic socket. Tube end connection helps simplify installation.
Cross-references AMS Automotive 4549R, Focus Auto Parts 84549R and Stabilus 5B-8242XM for the same application. See all 17.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Hood Lift Support for Toyota Avalon
This Stabilus hood lift support is built for the right side of 1995-1999 Toyota Avalon models. It uses a metal blade with bracket rod connection and a plastic socket tube connection to match the specified OE-style mounting points.
Key Features
- Brand: Stabilus
- Part number: 5B-8242XM
- Fits 1995-1999 Toyota Avalon, right
- Force rating: 407 N / 92 lb
- Compressed length: 242.5 mm (9.547 in)
- Extended length: 379 mm (14.921 in)
- Rod diameter: 8 mm (0.315 in)
- Tube diameter: 18 mm (0.709 in)
- Rod connection: metal blade with bracket
- Tube connection: plastic socket
Detailed Description
Stabilus 5B-8242XM is a hood lift support for the right side of Toyota Avalon vehicles from 1995 through 1999. The gas spring is specified at 407 N of force and uses the listed compressed and extended lengths to match the hood support geometry for this application. If you are replacing a worn hood strut on a Toyota Avalon, this part number provides a direct fit reference for the correct side and mounting style.
This part cross-references AMS Automotive 4549R and Focus Auto Parts 84549R for the same application.
Common Replacement Reasons
- Hood drops after being raised
- Hood will not stay open during service
- Weak or slow hood support movement
- Uneven hood lift on the right side
- Original support shows age-related loss of pressure
Installation Notes and Tips
Verify the vehicle is a 1995-1999 Toyota Avalon and confirm right-side placement before installation. Compare the existing support’s compressed length, extended length, and end fittings to the listed specifications for 5B-8242XM. Support the hood securely before removing the old strut, then align the metal blade with bracket and plastic socket connections with the factory mounting points.
Quality Assurance
Stabilus is a recognized OE supplier for gas springs and lift supports, and this hood lift support is built to the stated dimensions and force rating for the listed Avalon application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1999 | Toyota | Avalon | Right | — |
| 1998 | Toyota | Avalon | Right | — |
| 1997 | Toyota | Avalon | Right | — |
| 1996 | Toyota | Avalon | Right | — |
| 1995 | Toyota | Avalon | Right | — |
