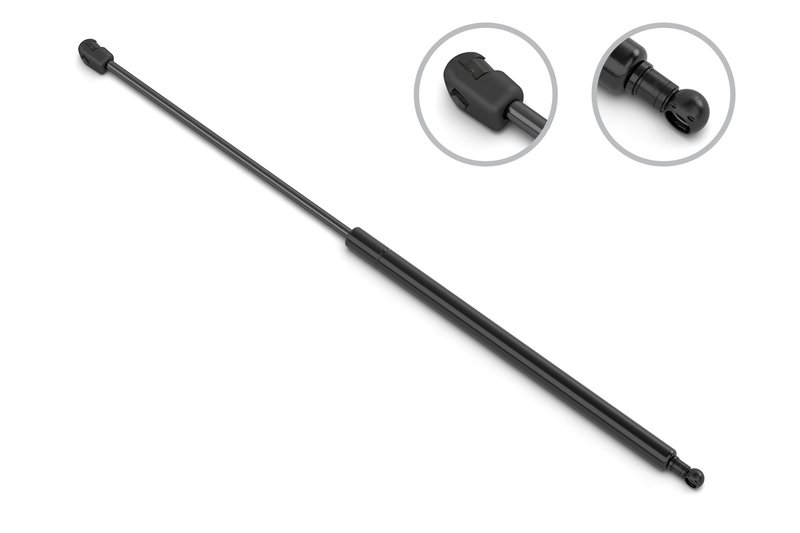

Stabilus 5B-826023 Hood Lift Support
Reliable Hood Lift Support for Ford F-150
The Stabilus 5B-826023 Hood Lift Support is engineered to provide consistent and smooth hood operation for your Ford F-150. Designed with precise dimensions and force specifications, this hood lift support ensures safe and controlled hood lifting and holding.
- Compatible with Ford F-150 models
- Compressed length: 226 mm (8.898 inches)
- Extended length: 364.5 mm (14.350 inches)
- Rod diameter: 8 mm (0.315 inches)
- Tube diameter: 18 mm
- Force rating: 440 N (99 lbs)
- Rod connection and shaft use durable plastic sockets
Technical Details and Specifications
This Stabilus hood lift support, part number 5B-826023, features a compressed length of 226 mm and extends up to 364.5 mm, providing the necessary range for proper hood support on the Ford F-150. The rod diameter measures 8 mm, while the tube diameter is 18 mm, ensuring structural integrity and smooth operation. With a force rating of 440 Newtons (99 pounds), this lift support offers reliable resistance to hold the hood securely in place during maintenance or inspection. The rod end attachment diameter is 10 mm (0.394 inches), and both the rod connection and shaft connection utilize plastic sockets for secure mounting and reduced wear.
Applications and Problem Solving
- Prevents hood from slamming shut unexpectedly
- Eliminates difficulty in lifting heavy hoods
- Maintains hood position during engine access
- Replaces worn or weak hood lift supports on Ford F-150
- Improves safety during vehicle maintenance
Installation Notes and Tips
Installation of the Stabilus 5B-826023 hood lift support is straightforward and requires no additional hardware kit. Ensure the plastic socket connections are properly seated on the hood and body mounting points. Verify the compressed and extended lengths match the original equipment specifications for your Ford F-150 to guarantee proper fit and function. Lubricate pivot points if necessary to maintain smooth operation.
Quality Assurance and Warranty
Stabilus is a recognized manufacturer of automotive lift supports, known for precision engineering and durability. While this product does not include a hardware kit, it is manufactured to meet OEM standards for fit and performance. Please consult Stabilus or your vehicle’s service manual for warranty details specific to this hood lift support, part number 5B-826023.
| Brand | Stabilus |
| Part Number | 5B-826023 |
| Y | |
| Y | |
| Body | 0.709 |
| Compressed Length | 8.898 |
| Compressed Length | 226 |
| Extended Length | 14.350 |
| Extended Length | 364.5 |
| Force (N) | 440 |
| Force Lbs | 99 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.709 |
| Tube Diameter | 18 |
| Tube End Attach Dia (IN) | 0.315 |
| Tube End Attach Dia (mm) | 8 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Ford | F-150 | N/A | |
| 2013 | Ford | F-150 | N/A | |
| 2012 | Ford | F-150 | N/A | |
| 2011 | Ford | F-150 | N/A | |
| 2010 | Ford | F-150 | N/A | |
| 2009 | Ford | F-150 | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
