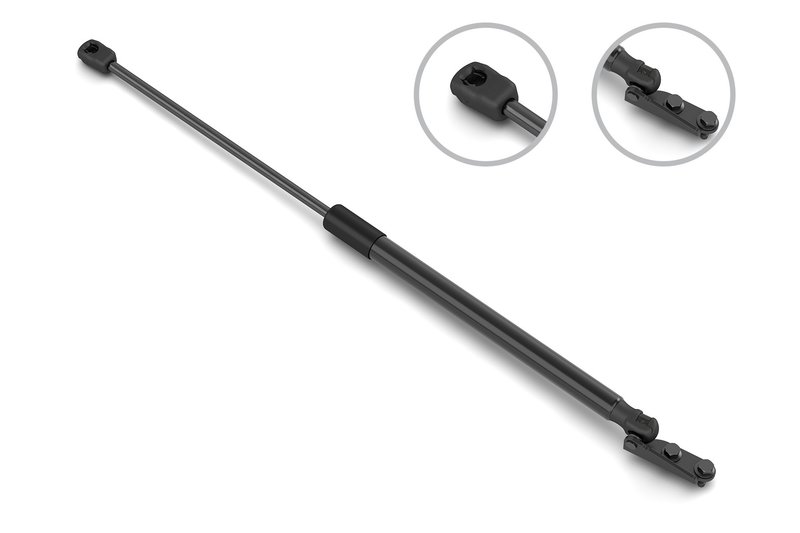

Stabilus 5B-875257 Hatch Lift Support - Left

Overview of Stabilus 5B-875257 Gas Spring for Nissan LEAF

The Stabilus 5B-875257 gas spring is engineered to provide reliable support and smooth operation for your Nissan LEAF. Designed with precise dimensions and force specifications, this gas spring ensures consistent performance in automotive applications requiring controlled motion.

• Compressed length: 243 mm (9.567 inches)
• Extended length: 381 mm (15 inches)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force: 520 N (117 lbs)
• Rod connection type: Plastic socket
• Compatible specifically with Nissan LEAF models

Technical Specifications and Features

The Stabilus 5B-875257 gas spring features a compact body diameter of 0.709 inches, optimized for automotive use where space and reliability are critical. The rod end attachment diameter measures 10 mm (0.394 inches), providing a secure fit with plastic socket connections on both the rod and shaft ends. With a force rating of 520 Newtons, this gas spring delivers consistent support for applications such as hood, trunk, or hatch lift assistance on the Nissan LEAF.

Applications and Problem Solving

This gas spring is designed for use in the Nissan LEAF to address common issues related to lift supports and controlled motion components. It is suitable for:

• Replacing worn or weak hood or trunk lift supports
• Ensuring smooth and controlled opening and closing of vehicle panels
• Reducing strain on hinges and mounting points
• Maintaining proper tension and force balance in lift mechanisms

Installation Notes and Tips

Installation of the Stabilus 5B-875257 gas spring requires attention to proper alignment and secure attachment of the plastic socket rod ends. Ensure the compressed and extended lengths match the original specifications for your Nissan LEAF. Avoid forcing the gas spring beyond its designed stroke length to prevent damage. No additional hardware kit is included, so retain original mounting components or source compatible fasteners.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of gas springs with a focus on durability and precision engineering. While specific warranty details for part number 5B-875257 should be confirmed at the point of purchase, Stabilus products typically meet stringent quality standards to ensure reliable performance in automotive applications.
