Stabilus 5B-878842

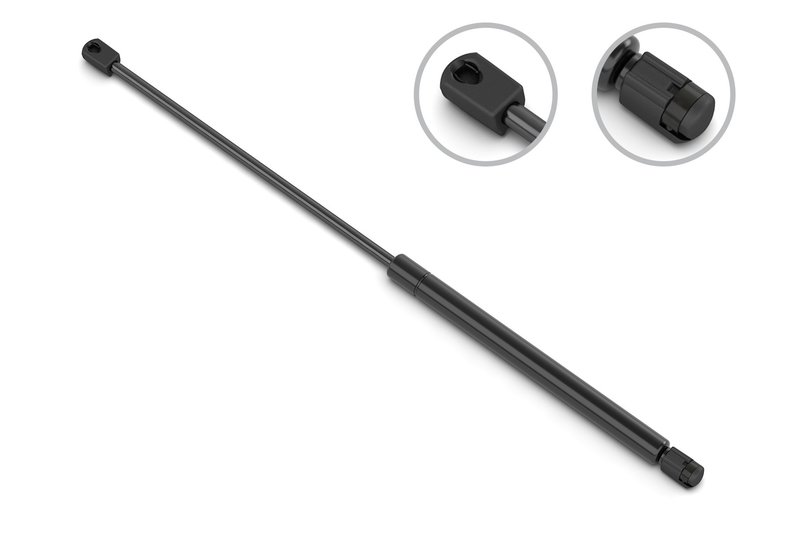

Stabilus 5B-878842 Gas Spring for Lincoln MKS

Stabilus 5B-878842 is a gas spring built for the 2012-2016 Lincoln MKS. With a 590 N (133 lb) force rating, 291 mm extended length, and 200.5 mm compressed length, it is specified for controlled lift and support in the original application.

Key Features

• Brand: Stabilus
• Part number: 5B-878842
• Force rating: 590 N / 133 lb
• Extended length: 291 mm (11.457 in)
• Compressed length: 200.5 mm (7.894 in)
• Rod diameter: 8 mm (0.315 in)
• Tube diameter: 19 mm (0.748 in)
• Plastic socket rod, tube, and shaft connections
• Direct fitment for 2012-2016 Lincoln MKS

Product Details

This Stabilus gas spring is engineered around the listed dimensions and attachment style for the Lincoln MKS. The 5B-878842 configuration uses plastic socket connections at the rod and tube ends, with a 10 mm tube-end attachment diameter and an 8 mm rod-end attachment diameter. If you are replacing a worn lift support on a 2012-2016 Lincoln MKS, this part number provides the dimensional and force match needed for the original application. This part cross-references AMS Automotive 6760 and Tuff Support 614247 for the same application.

Common Problems This Part Can Address

• Weak or failing lift support that no longer holds the panel open
• Slow, uneven, or uncontrolled opening action
• Drooping hood, hatch, or decklid in the original application
• Loss of support force from age, wear, or gas pressure loss
• Noise or inconsistent movement from a worn gas spring

Installation Notes and Tips

Verify the compressed length, extended length, force rating, and socket-style connections before installation. Compare the existing support to Stabilus 5B-878842 to confirm the rod and tube attachment diameters match the vehicle’s mounting points. For best results, replace only with the correct application-specific gas spring for the Lincoln MKS and inspect the mounting sockets for wear or damage before snapping the new support into place.

Quality Assurance

Stabilus is a recognized OE supplier of gas springs and lift supports, and this part is built to match the listed application specifications for 2012-2016 Lincoln MKS models.
