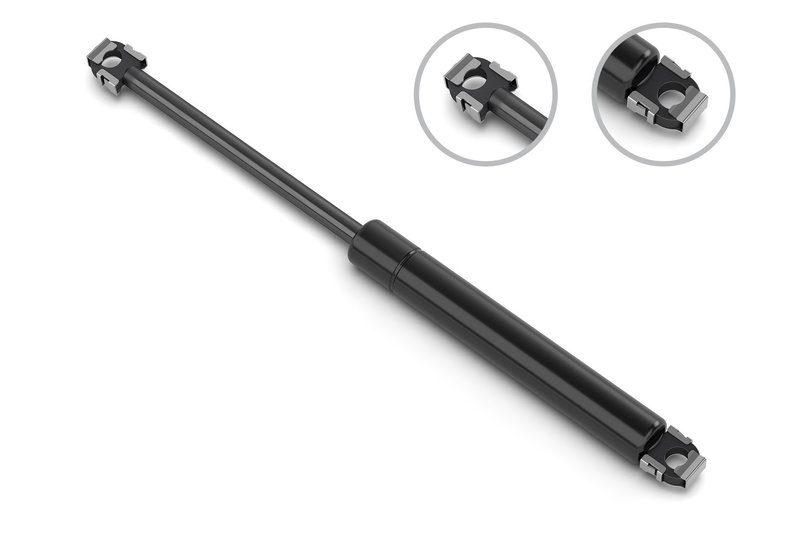

Stabilus 5B-9105EP Deck Lid Lift Support

Stabilus Gas Spring for BMW Trunk and Hatch Support

The Stabilus 5B-9105EP is an OE-style gas spring built for rear lift support on select BMW applications. With a 410 N (92 lb) force rating, 364.5 mm extended length, and metal blade connections with retaining clips, it is specified for consistent opening and closing action on compatible BMW 525i, 530i, 535i, 540i, and M5 models.

Key Features

• Brand: Stabilus
• Part number: 5B-9105EP
• Force rating: 410 N / 92 lb
• Extended length: 364.5 mm (14.35 in)
• Compressed length: 220 mm (8.661 in)
• Rod diameter: 8 mm (0.315 in)
• Tube diameter: 18 mm (0.709 in)
• Rod and tube connections: metal blade with retaining clip
• Fits BMW models without spoiler, where specified

Detailed Description

This Stabilus gas spring is engineered to match the dimensions and attachment style used on select BMW rear liftgate and trunk applications. The 5B-9105EP measures 364.5 mm extended and 220 mm compressed, with 8 mm rod diameter and 18 mm tube diameter, making it a direct-spec replacement for vehicles that require this exact length and force profile. It cross-references URO 51248110327 for the same application.

Compatible fitment includes 1989-1995 BMW 525i, 1994-1995 BMW 530i, 1975-1978 BMW 530i, 1994-1995 BMW 540i, 1993 BMW 525iT, 1985-1993 BMW 535i, and 1991-1993 BMW M5. Fitment notes specify models without spoiler.

What It Helps Address

• Weak or failing trunk or hatch support
• Slow or uneven liftgate opening
• Hatch or trunk lid that will not stay open
• Loss of controlled closing action
• Noise or binding from worn gas struts

Installation Notes and Tips

Verify the existing strut length, force rating, and end fittings before installation. This part uses metal blade connections with retaining clips at both ends, so confirm the attachment style matches the vehicle mounting points. For BMW 525i, 530i, 535i, 540i, and M5 applications, confirm the vehicle is equipped without a spoiler as noted in the fitment data. Replace gas springs in matched condition when the opposite side shows similar wear.

Quality Assurance

Stabilus is a recognized OE supplier of gas springs and lift support components. The 5B-9105EP is built to the listed dimensional and force specifications for consistent fit and function on the confirmed BMW applications.
