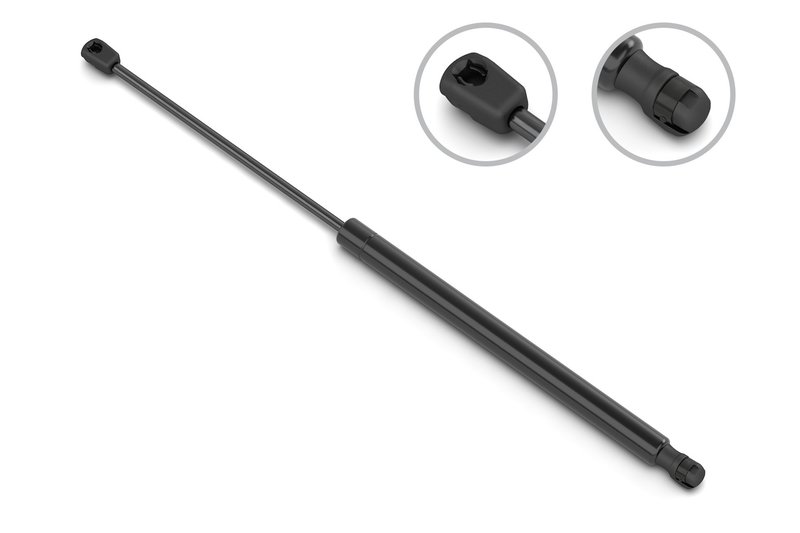

Stabilus 5B-932617 Hood Lift Support
| Brand | Stabilus 5B-932617 |
|---|---|
| Y | |
| Y | |
| Body | 0.709 |
| Compressed Length | 10.315 |
| Compressed Length | 262 |
| Extended Length | 14.921 |
| Extended Length | 379 |
| Force (N) | 180 |
| Force Lbs | 40 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.709 |
| Tube Diameter | 18 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
| Fits | Nissan · 10 vehicles |
Hood lift support. Provides smooth, controlled opening and closing action.
Plastic socket ends. Simple attachment points for a secure fit.
40 lb force. Balanced support for easy hood handling.
Cross-references AMS Automotive 7094, Pioneer Automotive Industries 749520 and Stabilus 5B-932617 for the same application. See all 24.
Hood Lift Support for Nissan Murano
This Stabilus hood lift support is built for the 2015-2024 Nissan Murano and helps maintain controlled hood movement during service. Part number 5B-932617 is a direct-fit hood support with a 180 N (40 lb) force rating and plastic socket connections at both ends.
- Fits 2015-2024 Nissan Murano
- Stabilus part number 5B-932617
- 180 N / 40 lb lift force
- Compressed length: 10.315 in (262 mm)
- Extended length: 14.921 in (379 mm)
- Rod diameter: 0.315 in (8 mm)
- Tube diameter: 0.709 in (18 mm)
- Plastic socket rod and tube connections
Product Details
Use this hood lift support to restore steady hood operation on a Nissan Murano when the original support no longer holds the hood in place or loses pressure over time. The Stabilus 5B-932617 is specified for Murano model years 2015 through 2024 and matches the listed compressed and extended dimensions for proper fitment. This part cross-references Tuff Support 613630 for the same application.
Common Replacement Reasons
- Hood drops or will not stay open during inspection or maintenance
- Weak or slow hood lift action after repeated use
- Uneven hood support caused by pressure loss in the gas strut
- Noisy or inconsistent hood movement when opening or closing
- Need for a direct replacement hood strut on a Nissan Murano
Installation Notes
Verify the existing support’s length, end fittings, and force rating before installation. Match the plastic socket connections to the vehicle mounting points and confirm the hood opens and closes smoothly after replacement. If the hood uses paired supports, inspect the opposite side for wear so both sides operate evenly.
Quality Assurance
Stabilus is a recognized OE supplier for gas springs and lift supports, and this hood lift support is built to the listed dimensional and force specifications for consistent replacement performance.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2024 | Nissan | Murano | N/A | — |
| 2023 | Nissan | Murano | N/A | — |
| 2022 | Nissan | Murano | N/A | — |
| 2021 | Nissan | Murano | N/A | — |
| 2020 | Nissan | Murano | N/A | — |
| 2019 | Nissan | Murano | N/A | — |
| 2018 | Nissan | Murano | N/A | — |
| 2017 | Nissan | Murano | N/A | — |
| 2016 | Nissan | Murano | N/A | — |
| 2015 | Nissan | Murano | N/A | — |
