OE Quality
60-Day Returns

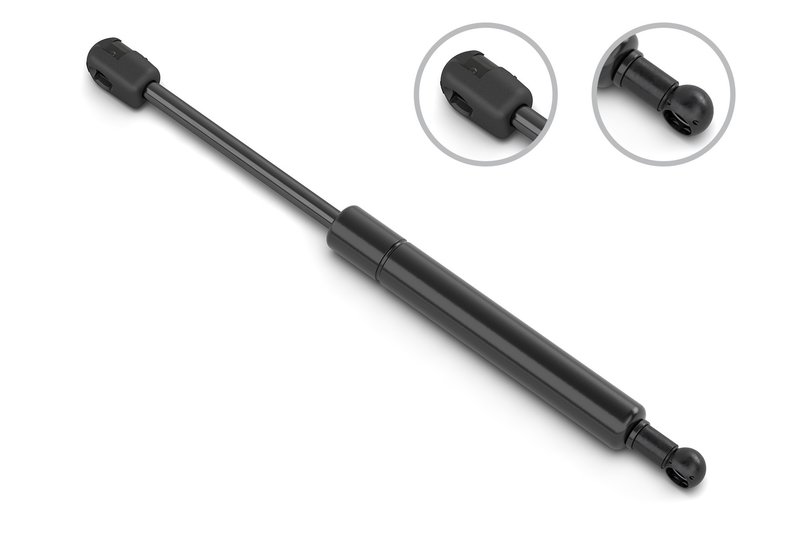

Stabilus 5B-9357BA Hood Lift Support
Reliable Hood Lift Support for Porsche 968
The Stabilus 5B-9357BA hood lift support is engineered to provide consistent and smooth hood operation for your Porsche 968. Designed with precise dimensions and force ratings, this hood lift support ensures safe and controlled lifting and holding of the vehicle's hood.
- Compatible with Porsche 968 models
- Force rating of 600 Newtons (135 lbs) for reliable support
- Compressed length: 163.5 mm (6.437 inches)
- Extended length: 245 mm (9.646 inches)
- Rod diameter: 8 mm (0.315 inches) with plastic socket connection
- Tube diameter: 18 mm
- Rod end attachment diameter: 10 mm (0.394 inches)
- No hardware kit included
Technical Specifications and Design Details
The Stabilus 5B-9357BA hood lift support features a robust design with an 8 mm rod diameter and an 18 mm tube diameter, providing the necessary strength and durability for daily use. The gas spring offers a force of 600 Newtons (135 lbs), ensuring smooth hood lifting and secure holding. The compressed length measures 163.5 mm (6.437 inches), extending up to 245 mm (9.646 inches) when fully deployed. The rod connection utilizes a plastic socket for secure attachment, with a rod end diameter of 10 mm (0.394 inches), matching OEM specifications for the Porsche 968.
Applications and Problem Solving
- Replaces worn or weak hood lift supports on Porsche 968
- Prevents hood from slamming shut during maintenance
- Eliminates difficulty in lifting heavy hoods
- Restores smooth and controlled hood operation
- Ensures safety when accessing engine compartment
Installation Notes and Tips
Installation of the Stabilus 5B-9357BA hood lift support requires no additional hardware as it is designed to fit directly onto the existing mounting points of the Porsche 968. Ensure the plastic socket connections are securely attached to avoid any movement or detachment during hood operation. It is recommended to replace lift supports in pairs to maintain balanced hood support and consistent performance.
Quality Assurance and Warranty
Stabilus is a recognized manufacturer of gas springs and lift supports, known for precision engineering and durability. While this product does not include a hardware kit, it meets OEM standards for fit and function on Porsche 968 models. Please consult Stabilus or authorized distributors for warranty details specific to the 5B-9357BA part number.
| Brand | Stabilus |
| Part Number | 5B-9357BA |
| Y | |
| Y | |
| Body | 0.709 |
| Compressed Length | 6.437 |
| Compressed Length | 163.5 |
| Extended Length | 9.646 |
| Extended Length | 245 |
| Force (N) | 600 |
| Force Lbs | 135 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | METAL SOCKET |
| Tube Dia (IN) | 0.709 |
| Tube Diameter | 18 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1995 | Porsche | 968 | N/A | |
| 1994 | Porsche | 968 | N/A | |
| 1993 | Porsche | 968 | N/A | |
| 1992 | Porsche | 968 | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
