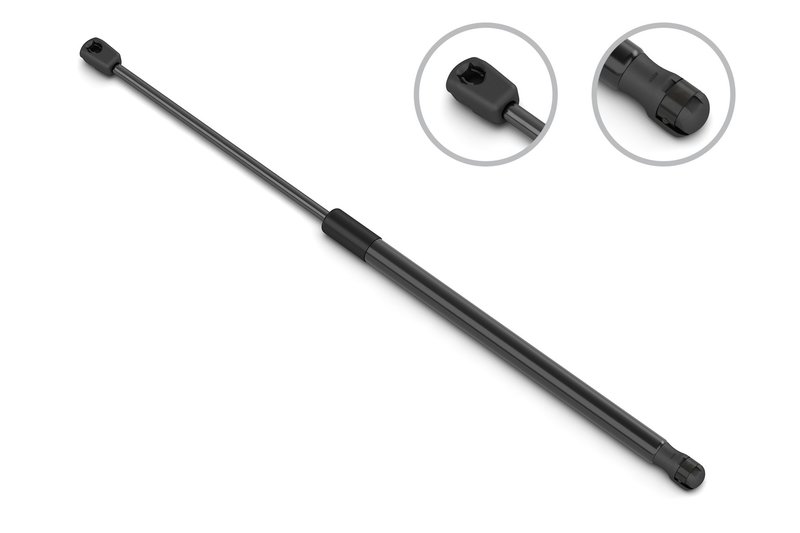

Stabilus 5B-941221 Hood Lift Support
| Brand | Stabilus 5B-941221 |
|---|---|
| Y | |
| Y | |
| Body | 0.709 |
| Compressed Length | 9.193 |
| Compressed Length | 233.5 |
| Extended Length | 14.291 |
| Extended Length | 363 |
| Force (N) | 315 |
| Force Lbs | 71 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.709 |
| Tube Diameter | 18 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
| Fits | Hyundai · 3 vehicles |
OE direct replacement. Restores hood support with a 315 N lift force.
Plastic socket ends. Simple attachment style for straightforward installation.
Stabilus hood lift support with a compact gas strut design.
Cross-references AMS Automotive 6020, Stabilus 5B-941221 and Tuff Support 613700 for the same application. See all 17.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Hood Lift Support for Hyundai Sonata
This Stabilus hood lift support is built for 2015-2017 Hyundai Sonata applications and is identified by part number 5B-941221. It provides controlled hood movement with OE-style plastic socket connections and a gas-charged design sized for the listed Sonata fitment.
- Brand: Stabilus
- Part number: 5B-941221
- Fits 2015-2017 Hyundai Sonata
- Force rating: 315 N / 71 lb
- Compressed length: 233.5 mm (9.193 in)
- Extended length: 363 mm (14.291 in)
- Rod diameter: 8 mm (0.315 in)
- Tube diameter: 18 mm (0.709 in)
- Rod and tube connections: plastic socket
- Rod end attachment diameter: 10 mm (0.394 in)
- Tube end attachment diameter: 10 mm (0.394 in)
Detailed Product Overview
Stabilus 5B-941221 is a hood lift support for Hyundai Sonata models from 2015 through 2017. The 315 N gas strut specification, compact compressed length, and extended length dimensions are matched to the hood support geometry used on the listed Sonata applications. If you are replacing a weak or failing hood strut on a 2015-2017 Hyundai Sonata, this part number 5B-941221 provides the correct OE-style connection type and dimensional profile for the application.
This part cross-references Tuff Support 613700 for the same application.
Common Problems This Part Can Address
- Hood drops after being raised
- Hood will not stay open during service
- Uneven or slow hood lift action
- Loss of gas pressure in the original support
- Need for a direct replacement hood strut on a Hyundai Sonata
Installation Notes and Tips
Verify the vehicle is a 2015, 2016, or 2017 Hyundai Sonata before ordering. Compare the existing support’s compressed length, extended length, and socket-style end fittings to confirm match-up with 5B-941221. Replace one side at a time only if the vehicle uses a single hood support, and support the hood securely before removing the old strut.
Quality Assurance
Stabilus is a recognized supplier of gas spring and lift support components, and this hood lift support is built to the listed OE-style dimensions and force rating for the specified Hyundai Sonata fitment.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017 | Hyundai | Sonata | N/A | — |
| 2016 | Hyundai | Sonata | N/A | — |
| 2015 | Hyundai | Sonata | N/A | — |
