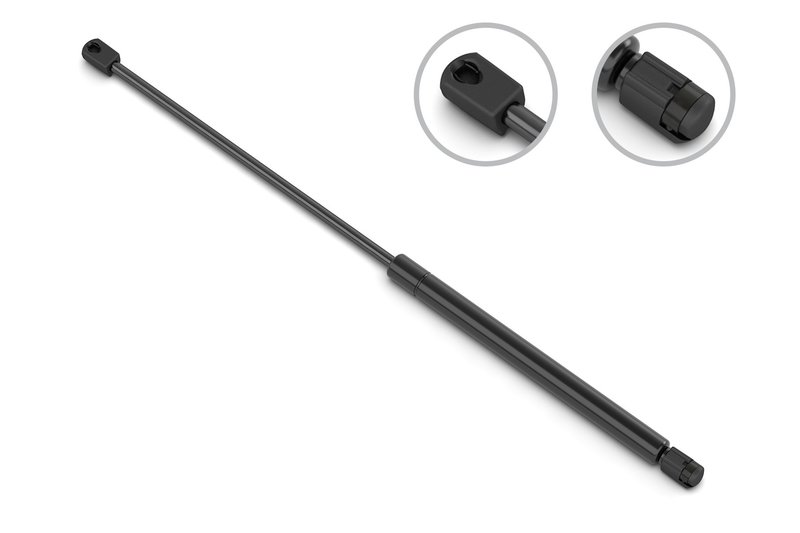

Stabilus 5B-943133 Back Glass Lift Support
Back Glass Lift Support for Jeep Grand Cherokee
This Stabilus back glass lift support is built for the rear glass on 2005-2010 Jeep Grand Cherokee models. Part number 5B-943133 provides controlled lift and hold performance for the back glass, helping restore normal operation when the original support loses pressure.
Key Features
- Brand: Stabilus
- Part number: 5B-943133
- Category: Body > Glass, Windows and Related Components
- Part type: Back Glass Lift Support
- Force rating: 200 N / 45 lb
- Compressed length: 256.5 mm (10.098 in)
- Extended length: 382 mm (15.039 in)
- Rod diameter: 8 mm (0.315 in)
- Tube diameter: 18 mm (0.709 in)
- Plastic socket rod, shaft, and tube connections
- Fits 2005-2010 Jeep Grand Cherokee, N/A
Detailed Description
Stabilus 5B-943133 is a back glass lift support engineered for the rear glass on Jeep Grand Cherokee vehicles from 2005 through 2010. With a 200 N force rating, 382 mm extended length, and plastic socket connections at the rod and tube ends, this lift support is specified to match the rear glass application and restore smooth opening and holding action. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. Compatible with 2005-2010 Jeep Grand Cherokee rear glass service needs, 5B-943133 is a direct replacement option for worn or weak lift supports.
Common Problems It Can Address
- Rear glass that drops instead of staying open
- Weak or slow lift action at the back glass
- Loss of support pressure in the lift strut
- Back glass that is difficult to raise or hold
- Uneven or inconsistent rear glass movement
Installation Notes and Tips
Verify the vehicle application before installation and compare the compressed length, extended length, and end fittings to the original support. Inspect the mounting points on the Jeep Grand Cherokee rear glass and body for wear or damage before replacing the part. Confirm the plastic socket connections seat fully and operate the glass several times after installation to check alignment and support action.
Quality Assurance
Stabilus is a recognized supplier of gas-charged support components, and this lift support is built to the listed dimensions and force specification for the stated application. Part number 5B-943133 is identified for 2005-2010 Jeep Grand Cherokee rear glass fitment.
| Brand | Stabilus |
|---|---|
| Part Number | 5B-943133 |
| Y | |
| Y | |
| Body | 0.709 |
| Compressed Length | 10.098 |
| Compressed Length | 256.5 |
| Extended Length | 15.039 |
| Extended Length | 382 |
| Force (N) | 200 |
| Force Lbs | 45 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.315 |
| Rod End Attachment Dia (MM) | 8 |
| Shaft | 0.315 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.709 |
| Tube Diameter | 18 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2010 | Jeep | Grand Cherokee | N/A | |
| 2009 | Jeep | Grand Cherokee | N/A | |
| 2008 | Jeep | Grand Cherokee | N/A | |
| 2007 | Jeep | Grand Cherokee | N/A | |
| 2006 | Jeep | Grand Cherokee | N/A | |
| 2005 | Jeep | Grand Cherokee | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
