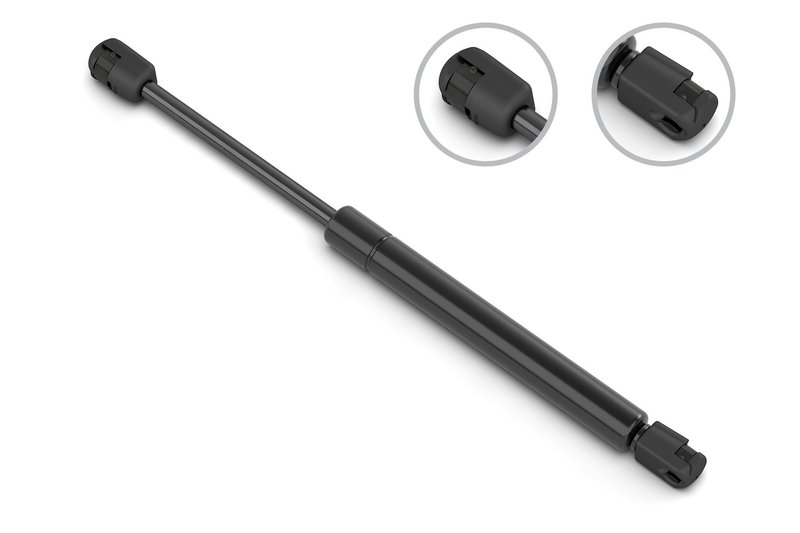

Stabilus 5B-9915VU Deck Lid Lift Support
Stabilus Gas Strut for Grand Prix Spoiler Applications
The Stabilus 5B-9915VU is a gas strut built for specific Pontiac Grand Prix spoiler applications. With a 560 N (126 lb) force rating, plastic socket connections, and compact OE-style dimensions, it is specified for controlled lift and support in the rear spoiler area.
Key Features
- Brand: Stabilus
- Part number: 5B-9915VU
- Force rating: 560 N / 126 lb
- Compressed length: 183 mm (7.205 in)
- Extended length: 278 mm (10.945 in)
- Rod diameter: 8 mm (0.315 in)
- Tube diameter: 19 mm (0.748 in)
- Plastic socket rod and tube connections
- OE-style dimensions for direct replacement use
Detailed Description
This Stabilus gas spring is engineered around the listed dimensions and connection style to match the original support geometry used on select Pontiac Grand Prix spoiler applications. The 5B-9915VU uses plastic socket attachments at both ends, with an 8 mm rod and 19 mm tube, making it a precise replacement for vehicles that require this specific length and force profile. This part cross-references Dayco 84082 for the same application.
Compatible With 1999 Pontiac Grand Prix, spoiler-equipped 2nd design applications, and 2000-2003 Pontiac Grand Prix, spoiler-equipped applications. Use the 5B-9915VU when you need a replacement gas strut that matches the original mounting style and support characteristics for these Grand Prix models.
Common Issues This Part Can Address
- Weak or failing spoiler support
- Inconsistent lift or hold position
- Slow return or reduced assist from the original strut
- Noise or looseness from worn socket connections
- Loss of proper rear spoiler support on Grand Prix applications
Installation Notes and Tips
Verify compressed length, extended length, rod diameter, tube diameter, and socket style before installation. Confirm that the vehicle is a 1999 Pontiac Grand Prix 2nd design with spoiler or a 2000-2003 Pontiac Grand Prix with spoiler before ordering. Inspect the mounting points for wear or damage, and compare the original strut to the replacement to ensure the correct force rating and fitment.
Quality Assurance
Stabilus is a recognized gas spring manufacturer, and this part is built to the listed OE-style specifications for dimensional accuracy and consistent support performance.
| Brand | Stabilus |
|---|---|
| Part Number | 5B-9915VU |
| Y | |
| Y | |
| Body | 0.748 |
| Compressed Length | 7.205 |
| Compressed Length | 183 |
| Extended Length | 10.945 |
| Extended Length | 278 |
| Force (N) | 560 |
| Force Lbs | 126 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.748 |
| Tube Diameter | 19 |
| Tube End Attach Dia (IN) | 0.315 |
| Tube End Attach Dia (mm) | 8 |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2003 | Pontiac | Grand Prix | N/A | w/ Spoiler |
| 2002 | Pontiac | Grand Prix | N/A | w/ Spoiler |
| 2001 | Pontiac | Grand Prix | N/A | w/ Spoiler |
| 2000 | Pontiac | Grand Prix | N/A | w/ Spoiler |
| 1999 | Pontiac | Grand Prix | N/A | 2nd Design, w/ Spoiler |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
