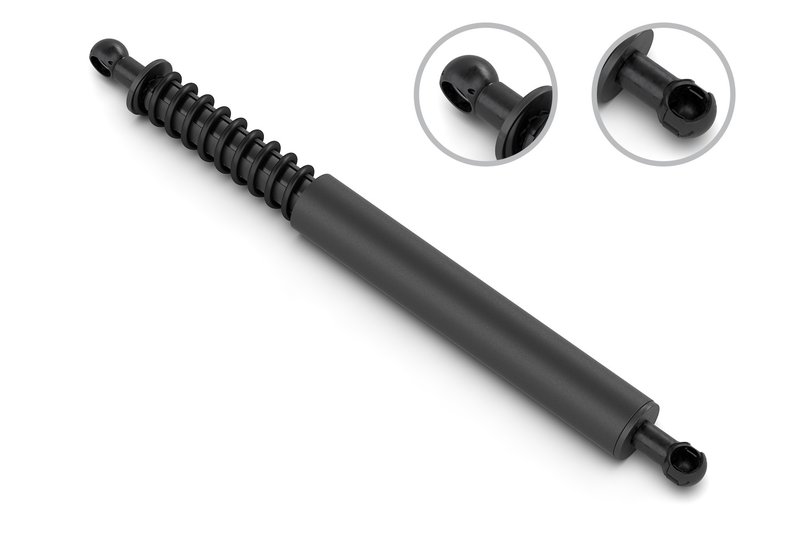

Stabilus 5C-008046 - Right
Stabilus 5C-008046 Gas Spring Overview
The Stabilus 5C-008046 gas spring is built for rear lift support on select Mercedes-Benz E-Class applications. With a 795 N force rating, metal socket connections, and OE-style dimensions, it is specified for the right side on listed vehicles.
- Brand: Stabilus
- Part number: 5C-008046
- Force: 795 N / 179 lb
- Compressed length: 242.5 mm (9.547 in)
- Extended length: 347.5 mm (13.681 in)
- Rod diameter: 10 mm (0.394 in)
- Tube diameter: 18 mm (0.709 in)
- Rod connection: metal socket
- Tube connection: metal socket
- Rod end attachment diameter: 13 mm (0.512 in)
- Tube end attachment diameter: 13 mm (0.512 in)
Fitment Details
Compatible with Mercedes-Benz E-Class rear lift support applications on the right side. Fits 2007 Mercedes-Benz E63 AMG, right; fits 2006 Mercedes-Benz E500, right; fits 2006 Mercedes-Benz E55 AMG, right; fits 2004-2005 Mercedes-Benz E320, right. Notes: Exc. Power Liftgate for 2007 E63 AMG, 2006 E500, and 2006 E55 AMG; w/o Power Liftgate for 2004-2005 E320.
This part cross-references Mercedes-Benz OE numbers 211 980 07 64 and 211 980 22 64 for the same application.
What This Part Helps Address
- Weak or failing lift support on the right side
- Rear hatch or trunk lid that drops too quickly
- Reduced holding force when opening the liftgate or deck lid
- Inconsistent support during cargo access
- Noise or uneven operation from a worn gas spring
Installation Notes
Verify the vehicle year, model, position, and liftgate configuration before installation. Match the metal socket ends and overall length to the removed unit, and confirm the application is right side only. For best results, replace a worn support with the correct OE-style gas spring for the listed Mercedes-Benz E63 AMG, E500, E55 AMG, or E320 fitments.
Quality Assurance
Stabilus is a recognized OE supplier for gas springs and lift supports. The 5C-008046 is built to the listed dimensions and force specification for the confirmed Mercedes-Benz applications.
| Brand | Stabilus |
|---|---|
| Part Number | 5C-008046 |
| 0.394 | Y |
| Compressed Length | 242.5 |
| Compressed Length | 9.547 |
| Rod Diameter | 10 |
| Tube Diameter | 18 |
| Extended Length | 13.681 |
| Extended Length | 347.5 |
| Head Drive Type | Y |
| Agricultural Equipment | N |
| Body | 0.709 |
| Engine Specific | N |
| Force (N) | 795 |
| Force Lbs | 179 |
| Hardware Kit | No |
| Heavy Truck | N |
| High Performance | N |
| IndustrialOff Highway | N |
| Marine | N |
| Medium Truck | N |
| MotorCycleRV | N |
| NonVehicle Specific | N |
| Personal Watercraft | N |
| Rod Connection | Metal socket |
| Rod Dia (IN) | 0.394 |
| Rod End Attachment Dia (IN) | 0.512 |
| Rod End Attachment Dia (MM) | 13 |
| Shaft | 0.394 |
| Shaft Connection | Metal socket |
| Small Engine | N |
| Snowmobile | N |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2007 | Mercedes-Benz | E63 AMG | Right | Exc.Power Liftgate | |
| 2006 | Mercedes-Benz | E500 | Right | Exc.Power Liftgate | |
| 2006 | Mercedes-Benz | E55 AMG | Right | Exc.Power Liftgate | |
| 2005 | Mercedes-Benz | E320 | Wagon | Right | w/o Power Liftgate |
| 2004 | Mercedes-Benz | E320 | Wagon | Right | w/o Power Liftgate |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
