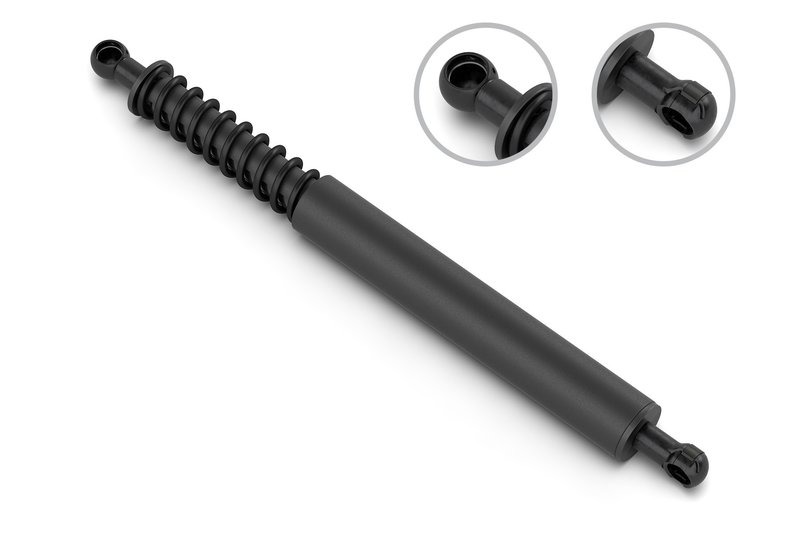

Stabilus 5C-008050 - Left
Stabilus 5C-008050 Gas Strut Overview
The Stabilus 5C-008050 is a gas strut with metal socket connections and OE-style dimensions for select Mercedes-Benz E-Class applications. It is built with a 10 mm rod, 18 mm tube, and a 795 N (179 lb) force rating to support controlled lift and hold performance.
Compatible With 2004-2007 Mercedes-Benz E-Class liftgate applications listed below, including left-side fitments for E320, E500, E55 AMG, and E63 AMG models. The Stabilus 5C-008050 is also referenced by OE and aftermarket cross numbers for the same application.
Key Features
- Part number: 5C-008050
- Brand: Stabilus
- Force rating: 795 N / 179 lb
- Compressed length: 242.5 mm (9.547 in)
- Extended length: 347.5 mm (13.681 in)
- Rod diameter: 10 mm (0.394 in)
- Tube diameter: 18 mm (0.709 in)
- Metal socket rod and tube connections
- OE-style dimensions for direct application matching
Detailed Description
This Stabilus gas strut is specified for Mercedes-Benz E-Class rear liftgate support on the left side, with fitment for 2004-2005 Mercedes-Benz E320, 2006 Mercedes-Benz E500, 2006 Mercedes-Benz E55 AMG, and 2007 Mercedes-Benz E63 AMG. Its compressed and extended lengths, socket-style ends, and 795 N force rating are the key dimensions used to match the original lift support geometry and operating load. Part number 5C-008050 is also cross-referenced in OE and aftermarket catalogs for the same vehicle application.
This part cross-references Mercedes-Benz OE numbers 211 980 11 64 and 211 980 21 64 for the same application.
What It Helps Address
- Rear liftgate that drops too quickly
- Liftgate that will not stay open
- Weak or uneven hatch support on the left side
- Loss of controlled opening and closing action
- Noise or binding from a worn gas strut
Installation Notes and Tips
Verify the vehicle year, model, and left-side application before ordering. Compare the compressed length, extended length, rod diameter, tube diameter, and socket end dimensions against the original strut to confirm match. Replace only with the correct side and force rating for proper liftgate balance. Support the liftgate securely during service and inspect the mounting points for wear or damage before installation.
Quality Assurance
Stabilus is an established OE supplier for gas springs and lift supports, and this part is built to match the listed Mercedes-Benz E-Class fitment and dimensional specifications.
| Brand | Stabilus |
|---|---|
| Part Number | 5C-008050 |
| 0.394 | Y |
| Compressed Length | 242.5 |
| Compressed Length | 9.547 |
| Rod Diameter | 10 |
| Tube Diameter | 18 |
| Extended Length | 13.681 |
| Extended Length | 347.5 |
| Head Drive Type | Y |
| Agricultural Equipment | N |
| Body | 0.709 |
| Engine Specific | N |
| Force (N) | 795 |
| Force Lbs | 179 |
| Hardware Kit | No |
| Heavy Truck | N |
| High Performance | N |
| IndustrialOff Highway | N |
| Marine | N |
| Medium Truck | N |
| MotorCycleRV | N |
| NonVehicle Specific | N |
| Personal Watercraft | N |
| Rod Connection | Metal socket |
| Rod Dia (IN) | 0.394 |
| Rod End Attachment Dia (IN) | 0.512 |
| Rod End Attachment Dia (MM) | 13 |
| Shaft | 0.394 |
| Shaft Connection | Metal socket |
| Small Engine | N |
| Snowmobile | N |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2007 | Mercedes-Benz | E63 AMG | Left | Exc.Power Liftgate | |
| 2006 | Mercedes-Benz | E500 | Left | Exc.Power Liftgate | |
| 2006 | Mercedes-Benz | E55 AMG | Left | Exc.Power Liftgate | |
| 2005 | Mercedes-Benz | E320 | Wagon | Left | w/o Power Liftgate |
| 2004 | Mercedes-Benz | E320 | Wagon | Left | w/o Power Liftgate |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
