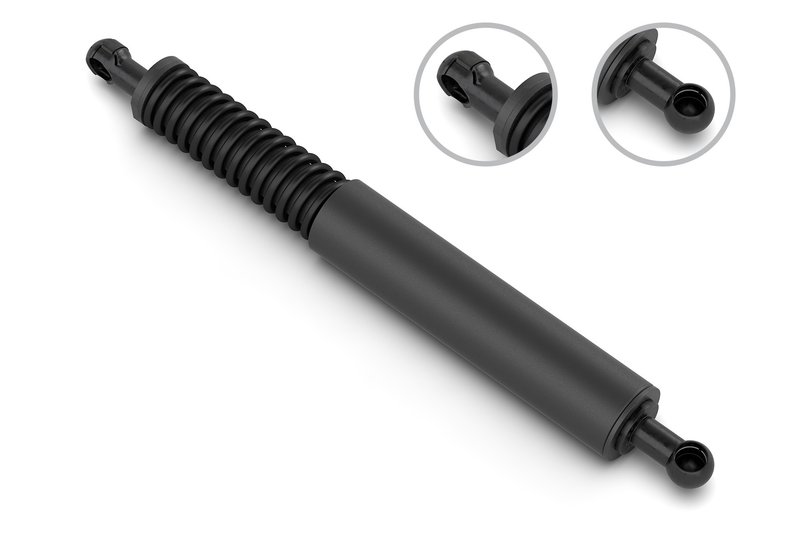

Stabilus 5C-437135 Hatch Lift Support - Left

Overview of Stabilus Gas Spring for Volvo V70 and XC70

The Stabilus gas spring part number 5C-437135 is engineered to provide reliable support and smooth operation for Volvo V70 and XC70 models. Designed with precise dimensions and force specifications, this gas spring ensures consistent performance in vehicle applications requiring controlled lifting and lowering.

• Compressed length: 212.5 mm (8.366 inches)
• Extended length: 308 mm (12.126 inches)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 19 mm
• Force: 590 N (133 lbs)
• Rod end attachment diameter: 13 mm (0.512 inches)
• Rod connection type: Metal socket

Technical Specifications and Design Details

This Stabilus gas spring features a robust metal socket rod connection and a rod diameter of 8 mm, providing durability and secure attachment. The tube diameter of 19 mm supports the internal mechanism, delivering a force of 590 Newtons (133 pounds) to assist in lifting or holding components in place. The compressed length measures 212.5 mm, extending to 308 mm when fully deployed, making it suitable for specific applications on Volvo V70 and XC70 vehicles. The rod end attachment diameter of 13 mm ensures compatibility with mounting points designed for this size.

Compatible Applications for Volvo V70 and XC70

This gas spring is specifically compatible with Volvo V70 and XC70 models, making it an appropriate replacement part for OEM gas springs requiring similar dimensions and force ratings. It is not designed for agricultural, heavy truck, marine, or industrial off-highway use, focusing solely on passenger vehicle applications.

• Supports hood or trunk lift assistance
• Maintains smooth operation of tailgate or hatch
• Prevents sudden closure or slamming of panels
• Replaces worn or weakened gas springs in Volvo V70 and XC70
• Ensures consistent force for controlled movement

Installation Notes and Tips

When installing the Stabilus 5C-437135 gas spring, ensure the mounting points on the Volvo V70 or XC70 match the rod end attachment diameter of 13 mm. Use appropriate tools to avoid damage to the metal socket connections. It is recommended to replace gas springs in pairs to maintain balanced operation. Verify the orientation of the gas spring during installation to ensure proper function and longevity.

Quality Assurance and Warranty Information

Stabilus gas springs are manufactured to meet strict quality standards, providing reliable performance and durability. While specific warranty details for part number 5C-437135 should be confirmed with the supplier, Stabilus products typically come with a limited warranty covering defects in materials and workmanship under normal use conditions.
