Home› Body > Hatch› Stabilus 5C-502890 Hatch Lift Support - Left
Stabilus 5C-502890 Hatch Lift Support - LeftOE Quality 60-Day Returns
Part #: 5C-502890

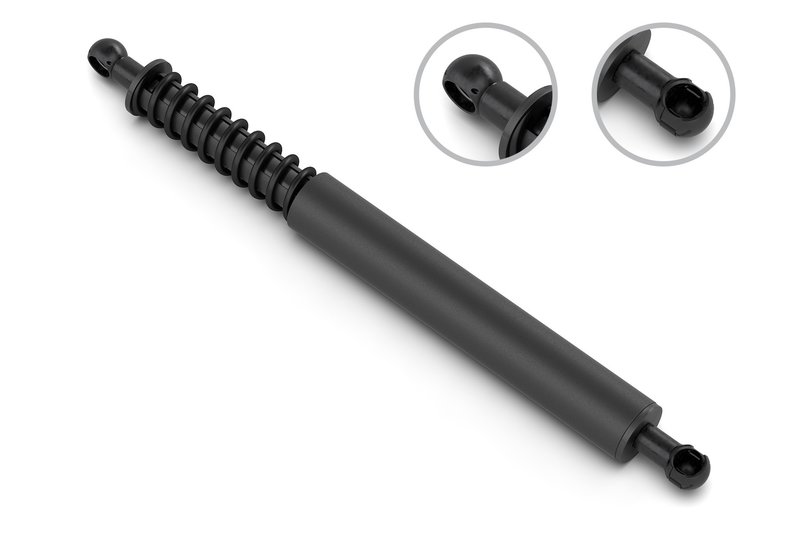

Stabilus 5C-502890 Hatch Lift Support - Left

Left
5 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$76.88Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Mercedes-Benz, E63 AMG and E350
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Hatch Lift Support options

Mercedes-Benz Hatch Lift Support

This Stabilus hatch lift support is built for the left side power liftgate application on select Mercedes-Benz E-Class and E63 AMG models. Part number 5C-502890 matches the OE-style gas spring dimensions and force rating needed for controlled hatch operation.

  • Brand: Stabilus
  • Part number: 5C-502890
  • Force rating: 745 N / 167 lb
  • Compressed length: 240.5 mm (9.469 in)
  • Extended length: 344.5 mm (13.563 in)
  • Rod diameter: 10 mm
  • Tube diameter: 18 mm
  • Rod and tube connections: metal socket
  • Left-side hatch lift support for power liftgate use

Fitment Details

Fits 2010 Mercedes-Benz E63 AMG, left. Fits 2008-2009 Mercedes-Benz E350, left. Fits 2006-2007 Mercedes-Benz E350, left.

Use this Stabilus 5C-502890 lift support when replacing a worn hatch strut on a Mercedes-Benz E350 or E63 AMG with a left-side power liftgate setup. The listed compressed and extended lengths, along with the 745 N force rating, are key specifications for matching hatch support geometry and lift effort. This part cross-references Mercedes-Benz OE numbers 211 980 13 64 and A2119801364 for the same application.

Common Problems It Can Address

  • Hatch or liftgate that drops instead of staying open
  • Weak or slow rear hatch lift action
  • Uneven support on the left side of the power liftgate
  • Noise or binding from a worn gas strut
  • Reduced holding force in cold weather or after long-term use

Installation Notes

Verify the vehicle year, model, and left-side application before installation. Compare the compressed length, extended length, and socket-style end connections to the original support to confirm proper fitment on the Mercedes-Benz E350 or E63 AMG hatch. Support the hatch securely during replacement and transfer any existing mounting clips or retainers if required by the vehicle.

Quality Assurance

Stabilus is a recognized OE supplier for gas springs and lift supports, and this part is built to match the specified force and dimensional requirements for the listed Mercedes-Benz applications.

BrandStabilus
Part Number5C-502890
Y
Y
Body0.709
Compressed Length9.469
Compressed Length240.5
Extended Length13.563
Extended Length344.5
Force (N)745
Force Lbs167
Hardware KitNO
Rod ConnectionMETAL SOCKET
Rod Dia (IN)0.394
Rod Diameter10
Rod End Attachment Dia (IN)0.512
Rod End Attachment Dia (MM)13
Shaft0.394
Shaft ConnectionMETAL SOCKET
Tube ConnectionMETAL SOCKET
Tube Dia (IN)0.709
Tube Diameter18
Tube End Attach Dia (IN)0.512
Tube End Attach Dia (mm)13

This part fits 5 vehicles. Search below:

YearMakeModelPositionNotes
2010Mercedes-BenzE63 AMGLeftHatch Lift Support - Power Liftgate
2009Mercedes-BenzE350LeftHatch Lift Support - Power Liftgate
2008Mercedes-BenzE350LeftHatch Lift Support - Power Liftgate
2007Mercedes-BenzE350Left
2006Mercedes-BenzE350Left

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
