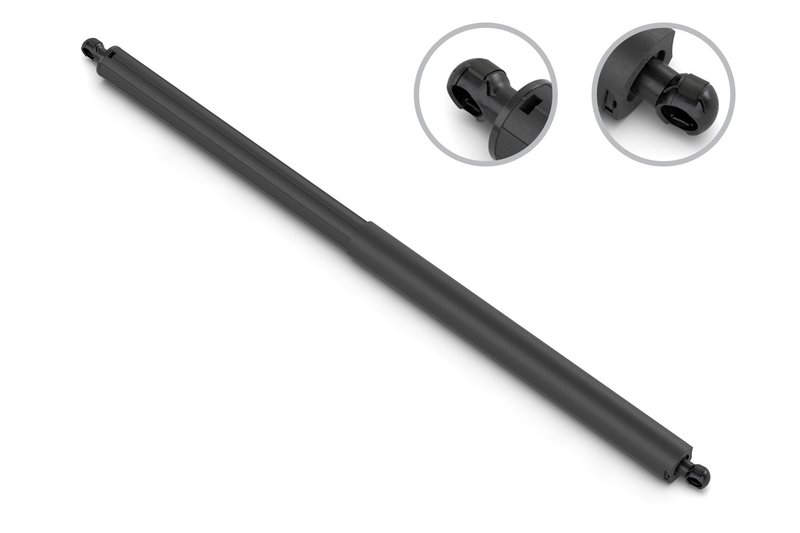

Stabilus 5C-560017 - Left
Mercedes-Benz R-Class Left Lift Support
This Stabilus lift support is built for the left side of select Mercedes-Benz R-Class models with a power liftgate. Part number 5C-560017 matches OE-style dimensions and attachment points for a direct replacement on supported applications.
Key Features
- Brand: Stabilus
- Part number: 5C-560017
- Force rating: 280 N / 63 lb
- Compressed length: 237 mm (9.331 in)
- Extended length: 319 mm (12.559 in)
- Rod diameter: 8 mm (0.315 in)
- Tube diameter: 19 mm (0.748 in)
- Metal socket rod and tube connections
- Left-side hatch lift support for power liftgate applications
Product Details
The Stabilus 5C-560017 is a gas-charged lift support with metal socket ends and OE-matched dimensions for select Mercedes-Benz R320, R350, R500, and R63 AMG models. Its 280 N force rating helps support the rear hatch or power liftgate during opening and closing, while the compact compressed length and 319 mm extended length align with the original application. This part cross-references Mercedes-Benz OE numbers 251 740 03 45 and 251 980 07 64 for the same application.
Fitment
- Fits 2009 Mercedes-Benz R320, left, Power Liftgate; To 07/09/2008
- Fits 2009 Mercedes-Benz R350, left, Power Liftgate; To 07/09/2008
- Fits 2007-2008 Mercedes-Benz R320, left, Hatch Lift Support - Power Liftgate
- Fits 2006-2008 Mercedes-Benz R350, left, Hatch Lift Support - Power LiftGate
- Fits 2008 Mercedes-Benz R500, left, w/ Power Liftgate
- Fits 2006-2007 Mercedes-Benz R500, left, Hatch Lift Support - Power Liftgate
- Fits 2007 Mercedes-Benz R63 AMG, left, Hatch Lift Support - Power Liftgate
What It Helps Address
- Rear hatch that will not stay open
- Liftgate that drops too quickly
- Weak or worn gas strut support
- Uneven or inconsistent hatch opening effort
- Noise or reduced control when raising the rear liftgate
Installation Notes
Verify the vehicle is equipped with a power liftgate and confirm left-side placement before ordering. Compare the compressed length, extended length, rod diameter, tube diameter, and metal socket ends to the original support to ensure proper match. For best results, replace a worn support with the hatch fully secured and support the liftgate during removal and installation.
Quality Assurance
Stabilus is a recognized OE supplier of gas springs and lift supports, and this part is built to match the listed Mercedes-Benz R-Class applications with OE-style fit and function.
| Brand | Stabilus |
|---|---|
| Part Number | 5C-560017 |
| 0.315 | Y |
| Compressed Length | 237 |
| Compressed Length | 9.331 |
| Rod Diameter | 8 |
| Tube Diameter | 19 |
| Extended Length | 12.559 |
| Extended Length | 319 |
| Head Drive Type | Y |
| Agricultural Equipment | N |
| Body | 0.748 |
| Engine Specific | N |
| Force (N) | 280 |
| Force Lbs | 63 |
| Hardware Kit | No |
| Heavy Truck | N |
| High Performance | N |
| IndustrialOff Highway | N |
| Marine | N |
| Medium Truck | N |
| MotorCycleRV | N |
| NonVehicle Specific | N |
| Personal Watercraft | N |
| Rod Connection | Metal socket |
| Rod Dia (IN) | 0.315 |
| Rod End Attachment Dia (IN) | 0.512 |
| Rod End Attachment Dia (MM) | 13 |
| Shaft | 0.315 |
| Shaft Connection | Metal socket |
| Small Engine | N |
| Snowmobile | N |
This part fits 11 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Mercedes-Benz | R320 | Left | Power Liftgate; To 07/09/2008 |
| 2009 | Mercedes-Benz | R350 | Left | Power Liftgate; To 07/09/2008 |
| 2008 | Mercedes-Benz | R320 | Left | Hatch Lift Support - Power Liftgate |
| 2008 | Mercedes-Benz | R350 | Left | Hatch Lift Support - Power Liftgate |
| 2008 | Mercedes-Benz | R500 | Left | w/ Power Liftgate |
| 2007 | Mercedes-Benz | R320 | Left | Hatch Lift Support - Power Liftgate |
| 2007 | Mercedes-Benz | R350 | Left | Hatch Lift Support - Power Liftgate |
| 2007 | Mercedes-Benz | R500 | Left | Hatch Lift Support - Power Liftgate |
| 2007 | Mercedes-Benz | R63 AMG | Left | Hatch Lift Support - Power Liftgate |
| 2006 | Mercedes-Benz | R350 | Left | Hatch Lift Support - Power Liftgate |
| 2006 | Mercedes-Benz | R500 | Left | Hatch Lift Support - Power Liftgate |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
