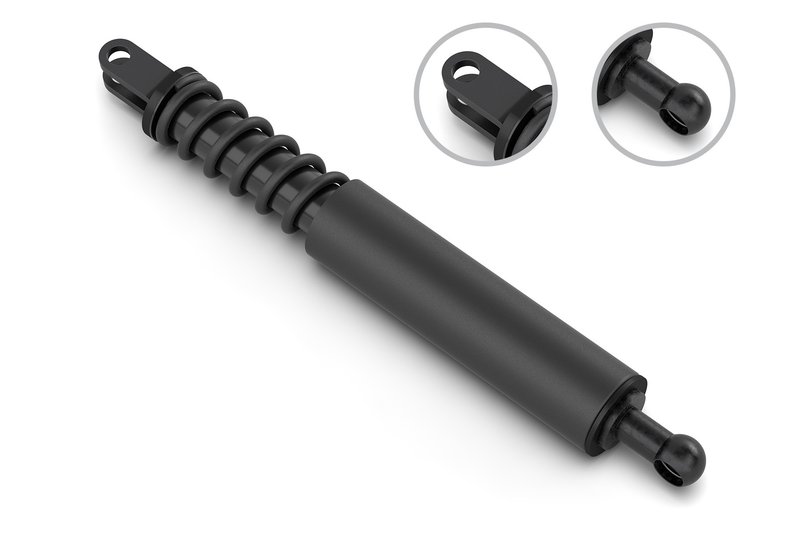

Stabilus 5C-8889KR Hatch Lift Support

Overview of Stabilus 5C-8889KR Gas Spring for BMW Models

The Stabilus 5C-8889KR gas spring is engineered for reliable performance in select BMW vehicles, including the 525i, 528i, and 540i models. Designed to provide consistent force and smooth operation, this gas spring supports various automotive applications requiring precise motion control.

• Compressed length: 200.5 mm (7.894 inches)
• Extended length: 277.5 mm (10.925 inches)
• Rod diameter: 10 mm (0.394 inches)
• Tube diameter: 19 mm
• Force: 450 N (101 lbs)
• Rod end attachment type: Fork connection with 9.1 mm (0.358 inches) diameter
• Body diameter: 0.748 inches

Technical Details and Specifications

The Stabilus 5C-8889KR gas spring features a robust design with a 10 mm rod diameter and a 19 mm tube diameter, ensuring durability and consistent performance. Its compressed length measures 200.5 mm, extending to 277.5 mm when fully deployed. The gas spring delivers a force of 450 Newtons (101 pounds), suitable for controlled lifting and dampening applications. The fork-style rod end connection with a 9.1 mm diameter provides secure attachment points compatible with the specified BMW models.

Compatible BMW Models and Applications

This gas spring is specifically compatible with BMW 525i, 528i, and 540i vehicles. It is designed for applications requiring precise force and motion control, such as hood supports, trunk lifts, or other mechanical assist functions within these models. The part number 5C-8889KR ensures correct fitment and performance for these BMW vehicles.

• Supports smooth hood or trunk lifting
• Replaces worn or weakened gas springs in BMW 525i, 528i, and 540i
• Maintains proper tension and force for mechanical components
• Prevents sudden closures or drops of supported parts
• Improves operational safety and convenience

Installation Notes and Tips

When installing the Stabilus 5C-8889KR gas spring, ensure the fork end connections align properly with the mounting points on the BMW vehicle. Use appropriate tools to avoid damage to the rod or tube during installation. Verify the orientation of the gas spring matches the original part to maintain correct force direction. No additional hardware kit is included, so retain existing mounting components or source compatible fasteners as needed.

Quality Assurance and Warranty Information

Stabilus gas springs are manufactured to meet strict quality standards for durability and performance. The 5C-8889KR part undergoes rigorous testing to ensure consistent force output and reliable operation in automotive environments. While specific warranty details are not provided here, Stabilus products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
