Home› Body > Trunk Lid and Compartment› Stabilus 5G-393413 Deck Lid Lift Support
Stabilus 5G-393413 Deck Lid Lift SupportOE Quality 60-Day Returns
Part #: 5G-393413

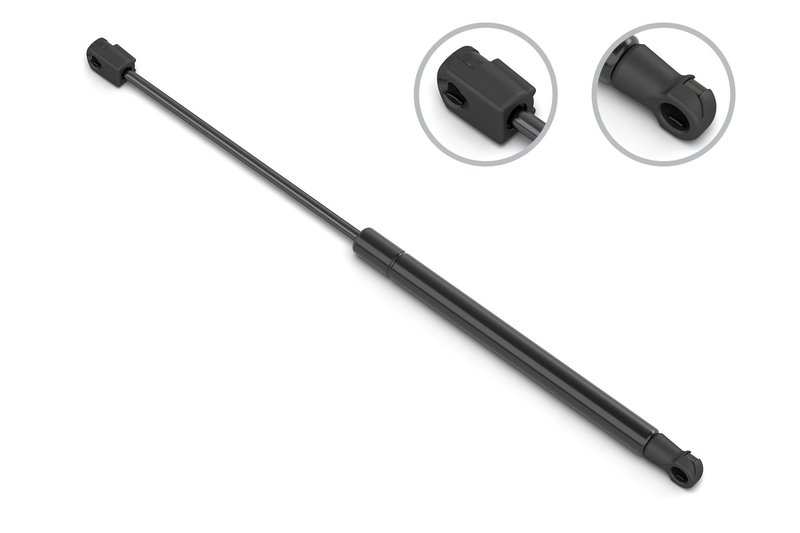

Stabilus 5G-393413 Deck Lid Lift Support

22 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$25.07Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Audi, A3, A3 Quattro, RS3, and S3
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Deck Lid Lift Support options

OE-Style Gas Strut for Audi A3, S3, and RS3

This Stabilus gas strut, part number 5G-393413, is built for Audi applications that require a compact OE-style lift support with plastic socket connections. It matches the listed compressed and extended dimensions for a direct-fit replacement on select Audi A3, A3 Quattro, S3, and RS3 models.

Key Features

  • Brand: Stabilus
  • Part number: 5G-393413
  • Compressed length: 178 mm (7.008 in.)
  • Extended length: 334 mm (13.15 in.)
  • Rod diameter: 6 mm (0.236 in.)
  • Tube diameter: 15.6 mm (0.614 in.)
  • Rod connection: plastic socket
  • Tube connection: plastic socket
  • Rod end attachment diameter: 8 mm (0.315 in.)
  • Tube end attachment diameter: 10 mm (0.394 in.)
  • Force rating: 0 N / 0 lb as listed in the catalog data

Detailed Description

Stabilus 5G-393413 is a gas spring/lift support specified by its exact compressed and extended lengths, shaft and tube diameters, and plastic socket end connections. It is listed for 2015-2020 Audi A3, 2015-2020 Audi A3 Quattro, 2015-2020 Audi S3, and 2017-2020 Audi RS3, making it a fitment-based replacement for vehicles that use this exact configuration. This part cross-references Bosch 7426 for the same application.

What This Part Helps Address

  • Weak or failing lift support performance
  • Hatch, lid, or panel that no longer stays open properly
  • Uneven or inconsistent support during opening and closing
  • Noise or binding from a worn gas strut assembly
  • Replacement needs for an OE-matched Audi A3, S3, or RS3 support

Installation Notes and Tips

Verify the existing strut’s compressed length, extended length, rod diameter, tube diameter, and socket-style end fittings before ordering. Confirm the vehicle application against the listed fitment for 2015-2020 Audi A3, 2015-2020 Audi A3 Quattro, 2015-2020 Audi S3, and 2017-2020 Audi RS3. Compare the old part number and attachment style to ensure the replacement matches the original mounting points.

Quality Assurance

Stabilus is an established OE supplier in gas spring and lift support applications, and this part is cataloged with exact dimensional specifications for application matching. Part number 5G-393413 is listed with direct interchange references to support accurate replacement selection.

BrandStabilus
Part Number5G-393413
Y
Y
Body0.614
Compressed Length7.008
Compressed Length178
Extended Length13.15
Extended Length334
Force (N)0
Force Lbs0
Hardware KitNO
Rod ConnectionPLASTIC SOCKET
Rod Dia (IN)0.236
Rod Diameter6
Rod End Attachment Dia (IN)0.315
Rod End Attachment Dia (MM)8
Shaft0.236
Shaft ConnectionPLASTIC SOCKET
Tube ConnectionPLASTIC SOCKET
Tube Dia (IN)0.614
Tube Diameter15.6
Tube End Attach Dia (IN)0.394
Tube End Attach Dia (mm)10

This part fits 22 vehicles. Search below:

YearMakeModelBody TypePositionNotes
2020AudiA3N/A
2020AudiA3 QuattroN/A
2020AudiRS3N/A
2020AudiS3N/A
2019AudiA3SedanN/A
2019AudiA3 QuattroSedanN/A
2019AudiRS3N/A
2019AudiS3N/A
2018AudiA3SedanN/A
2018AudiA3 QuattroSedanN/A
2018AudiRS3N/A
2018AudiS3N/A
2017AudiA3SedanN/A
2017AudiA3 QuattroSedanN/A
2017AudiRS3N/A
2017AudiS3N/A
2016AudiA3SedanN/A
2016AudiA3 QuattroSedanN/A
2016AudiS3N/A
2015AudiA3SedanN/A
2015AudiA3 QuattroSedanN/A
2015AudiS3N/A

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
