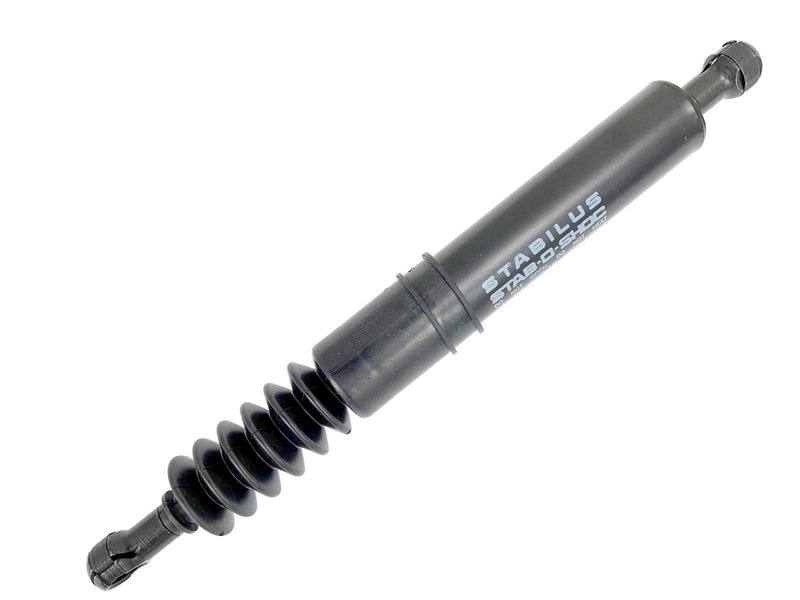

Stabilus 5L-866663 Tailgate Damper

Stabilus EZ-Down Tailgate Damper for Ram 1500

Stabilus 5L-866663 is an application-specific tailgate damper designed to control tailgate drop on select Ram trucks. It uses proven Hydro-Lift or Lift-O-Mat damping technology to slow tailgate movement for smoother operation and reduced risk of sudden release.

• Application-specific fit for select pickup truck tailgates
• Controlled damping for smoother tailgate opening and closing
• Ball socket ends with nylon end materials
• Compressed length: 8.56 in. / 217.5 mm
• Extended length: 11.46 in. / 291 mm
• Stroke length: 2.9 in. / 73.5 mm
• Cylinder outside diameter: 0.866 in. / 22 mm
• Maximum force: 47 lb / 210 N

Detailed Product Overview

Built to OE standards, this Stabilus tailgate damper is engineered for the Ram 1500 tailgate application listed below. The compact gas-charged design helps regulate tailgate motion so the gate lowers in a controlled manner instead of dropping abruptly. Part number 5L-866663 is a direct-fit style solution for trucks that need a replacement tailgate damper or were not equipped with one from the factory.

Compatible With 2019-2025 Ram 1500, N/A, w/o Multi-Function Tailgate. This part cross-references 6832 8821AA and 6832 8821AB for the same application. Part number 5L-866663 is the Stabilus reference for this Ram 1500 fitment.

What It Helps Address

• Tailgate dropping too quickly when opened
• Reduced control during cargo access
• Wear or failure in an existing tailgate damper
• Need for a replacement on a Ram 1500 without the Multi-Function Tailgate
• Improved tailgate handling in daily use

Installation Notes

Verify vehicle configuration before ordering. This damper is listed for 2019-2025 Ram 1500 models without the Multi-Function Tailgate. Confirm the mounting points and tailgate setup match the application before installation. Mounting hardware is not listed as included.

Quality Assurance

Stabilus manufactures this EZ-Down damper with OE-level engineering and durable materials for consistent damping performance in demanding pickup truck use. Part number 5L-866663 is built for the specified Ram 1500 application and is backed by Stabilus product design standards.
